Weldcraft CS410-25 W-410 Braided Rubber Water-Cooled TIG Torch (1 Torch)
$ 753.84
Unit price
/
Unavailable
By Weldcraft
Couldn't load pickup availability

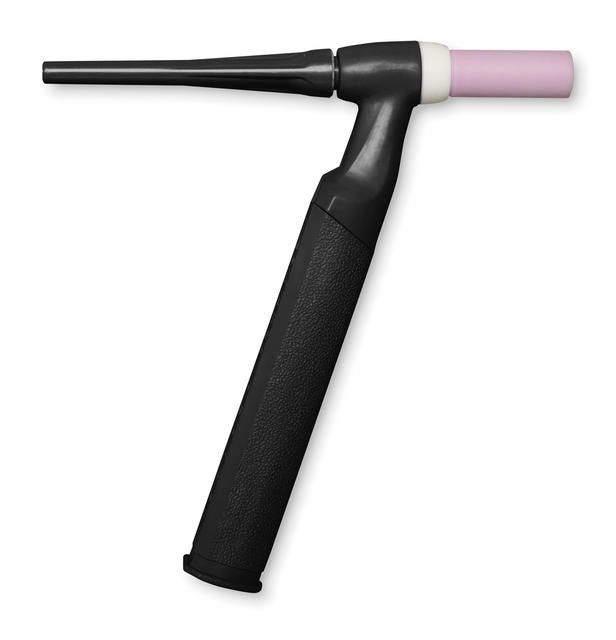

Weldcraft CS410-25 W-410 Braided Rubber Water-Cooled TIG Torch (1 Torch)
Formerly known as the CS410, the W-410 is a versatile water-cooled torch designed for demanding applications. The W-410 increases amperage output without increasing the torch size, and is engineered for welding satisfaction even in the coldest weather with top of the line technology.
Features:
Simplify Torch Package Installation
- With the ColorSmart® hose and cable sets that differentiate input water, water/power cable, and gas hoses
D-Handle™ Design
- Features a self-indexing flat top that allows for torch orientation by feel
Work in Cold Weather
- With the Tri-Flex® hose and cable assembly that remains flexible to ease handling and extending cable life
Improve High-Frequency Shielding
- Minimize gas leakages with the double-lip back cap seal
Specifications:
MODEL | W-410 |
RATED OUTPUT |
|
DUTY CYCLE | 100% |
ELECTRODE RANGE | .020" - 5/32" (0.5 - 4.0 mm) |
APPLICATIONS |
|
Consumables:
PART NUMBER | PART NAME |
18CG | Weldcraft TIG Torch Nozzle Insulator |
10N21 | Weldcraft .020" TIG Collect |
10N22 | Weldcraft .040" TIG Collect |
10N23 | Weldcraft 1/16" TIG Collect |
10N24 | Weldcraft 3/32" TIG Collect |
10N25 | Weldcraft 1/8" TIG Collect |
54N20 | Weldcraft 5/32" TIG Collect |
10N29 | Weldcraft .020" TIG Collect Body |
10N30 | Weldcraft .040" TIG Collect Body |
10N31 | Weldcraft 1/16" TIG Collect Body |
10N32 | Weldcraft 3/32" TIG Collect Body |
10N28 | Weldcraft 1/8" TIG Collect Body |
406488 | Weldcraft 5/32" TIG Collect Body |
10N50 | Weldcraft #4 Alumina Nozzle |
10N49 | Weldcraft #5 Alumina Nozzle |
10N48 | Weldcraft #6 Alumina Nozzle |
10N47 | Weldcraft #7 Alumina Nozzle |
10N46 | Weldcraft #8 Alumina Nozzle |
10N45 | Weldcraft #10 Alumina Nozzle |
10N44 | Weldcraft #12 Alumina Nozzle |
