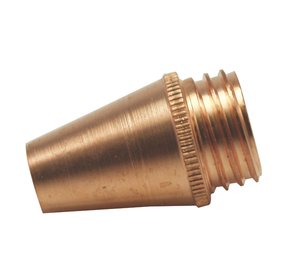

Tweco 24CT-62F (1240-1422) 24CT Series 5/8" Tapered Tip Flush Coarse Thread Nozzle (2 Pack)

$ 35.52
By Tweco
View details

Tweco 24CT-62F (1240-1422) 24CT Series 5/8" Tapered Tip Flush Coarse Thread Nozzle (2 Pack)





Professional & Weldskill 24 Series Air Cooled Nozzles offered in 2 Piece, coarse (CT) and fine thread (FN) series, as well as slip-on (A).



  • 2-Piece Nozzle require 34CT insulator (Sold Separately)



(Call for high usage quote - 641-201-1352)



Features:



  • Used in light to medium duty welding applications up to 400 amp
  • Formed and 3-piece nozzle designs
  • Easy identification - Part No. rolled stamped on the outside surface
  • Tapered nozzle 3-piece design - does not require an additional insulator
  • Nozzle threads onto the conductor tube



Specifications:



PART NUMBER 24CT-62F
MODEL 1240-1422
SERIES 24CT
COOLING Air
INSIDE DIAMETER 5/8" (15.9 mm)
NOZZLE DESIGN Tapered
NOZZLE STYLE Thread-On
NOZZLE/CONTACT TIP RELATIONSHIP 1/16" (1.6 mm) Tip Recess
OUTSIDE DIAMETER 0.750" (19.05 mm)



Variants:



 PART NUMBER MODEL INSIDE DIAMETER NOZZLE DESIGN NOZZLE/CONTACT TIP RELATIONSHIP
24CT-37S 1240-1404 3/8" (9.5 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24CT-50F 1240-1412 1/2" (12.7 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24CT-50S 1240-1414 1/2" (12.7 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24CT-62F 1240-1422 5/8" (15.9 mm) Tapered 1/16" (1.59 mm) Tip Recess
24CT-62R 1240-1423 5/8" (15.9 mm) Tapered 1/2" (12.7 mm) Tip Recess
24CT-62S 1240-1424 5/8" (15.9 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24CT-75R 1240-1433 3/4" (19.1 mm) Tapered 1/2" (12.7 mm) Tip Recess
24CT-75S 1240-1434 3/4" (19.1 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
