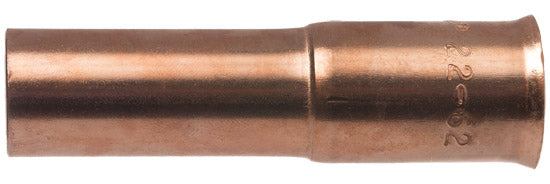

Tweco 22-37SS (1220-1101) 22 Series 3/8" Standard Short Stop Slip-On Flush Nozzle (2 Pack)
$ 13.86
Unit price
/
Unavailable
By Tweco
Couldn't load pickup availability
Tweco 22-37SS (1220-1101) 22 Series 3/8" Standard Short Stop Slip-On Flush Nozzle (2 Pack)
Professional & Weldskill 22 Series Air Cooled Slip-On Nozzles are self insulated and offered in formed or HD 3-piece designs. Formed nozzles come in standard or standard short stop.
- To be used with Nozzle Insulator 32
(Call for high usage quote - 641-201-1352)
Features:
- Used in light to medium duty welding applications up to 180 amps
- Formed copper nozzle uses nozzle insulator 32
- Easy identification - Part No. rolled stamped on the outside surface
Specifications:
| PART NUMBER | 22-37SS |
| MODEL | 1220-1101 |
| SERIES | 22 |
| COOLING | Air |
| INSIDE DIAMETER | 3/8" (9.5 mm) |
| NOZZLE DESIGN | Standard Short Stop |
| NOZZLE STYLE | Slip-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | Flush to 1/8" (3.2 mm) Tip Recess |
| OUTSIDE DIAMETER | 0.750" (19.05 mm) |
Variants:
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 22-37 | 1220-1100 | 3/8" (9.5 mm) | Standard | Adjustable Tip Recess - Tip Protruding |
| 22-37SS | 1220-1101 | 3/8" (9.5 mm) | Standard Short Stop | Flush to 1/8" (3.2 mm) Tip Recess |
| 22T-37SS | 1220-1301 | 3/8" (9.5 mm) | Tapered Short Stop | Flush to 1/8" (3.2 mm) Tip Recess |
| 22-50 | 1220-1110 | 1/2" (12.7 mm) | Standard | Adjustable Tip Recess - Tip Protruding |
| 22-50SS | 1220-1111 | 1/2" (12.7 mm) | Standard Short Stop | Flush to 1/8" (3.2 mm) Tip Recess |
| 22-62 | 1220-1120 | 5/8" (15.9 mm) | Standard | Adjustable Tip Recess - Tip Protruding |
| 22-62SS | 1220-1121 | 5/8" (15.9 mm) | Standard Short Stop | Flush to 1/8" (3.2 mm) Tip Recess |
