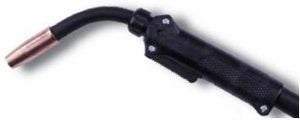

Tweco .035" Classic No. 1 180 Amp MIG Gun - Tweco® Style

$ 514.00
By Tweco

Size

Tweco .035" Classic No. 1 180 Amp MIG Gun - Tweco® Style





Features:



  • The Industry Standard - for over 40 years
  • Oval-Shaped Handle - reduces grip required to manipulate MIG gun and eases operator fatigue
  • High-Impact Crush-Resistant Handle - uses special plastic composition for long-lasting durability and dependability
  • Heavy Duty Handle - balanced to pivot at center for use in different welding positions
  • Metal Jacketed Three-Layer Conductor Tube Construction - (copper tube/silicon-resin glass insulator/metal jacket) for improved electrical conductivity
  • Trigger Contains Silver Plated Contacts - with self-cleaning action every time it is engaged or disengaged
  • Heavy Duty Design - for dependable industrial connectors
  • Field Repairable Cablehoz® - requires no additional connectors
  • Gun Hanger - located at bottom for convenience of resting the gun when not in use
  • Split Handle Case - provides access for easy repairs
  • Improved Performance - with longer life consumables
  • Wide Selection - of front end consumables available
  • Front and Rear Steel Spring Strain Relief  - provides support to their Cablehoz coming out of the rear of the handle and minimizes wire feed issues
  • Heavy Duty Contact Tips - in high heat applications offered
  • Interchangeable Front End Consumables - between Tweco® Classic No. and Tweco Spray Master®



Standard Options Include:



  • Rear Connector
  • Standard Connector Tube
  • Conduit Liner - 42 Series



PART NUMBER 110-3035 112-3035 115-3035 120-3035
STOCK NUMBER 1010-1111 1010-1112 1010-1113 1010-1114
WELDING PROCESSES
  • MIG (GMAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Aluminum (GMAW)
APPLICATION USAGE Light Duty
Light Duty
Light Duty
Light Duty
AMPS 180 Amps
180 Amps
180 Amps
180 Amps
DUTY CYCLE 60%
60%
60%
60%
GAS Carbon Dioxide
Carbon Dioxide
Carbon Dioxide
Carbon Dioxide
WIRE SIZE Up to .035" (0.9 mm)
Up to .035" (0.9 mm)
Up to .035" (0.9 mm)
Up to .035" (0.9 mm)
COOLED Air
Air
Air
Air
REAR CONNECTOR STYLE Tweco® Style
Tweco® Style
Tweco® Style
Tweco® Style
LENGTH 10 ft (3 m)
12 ft (3.6 m)
15 ft (4.6 m)
20 ft (6.1 m)





(Call for high usage quote - 641-201-1352)
