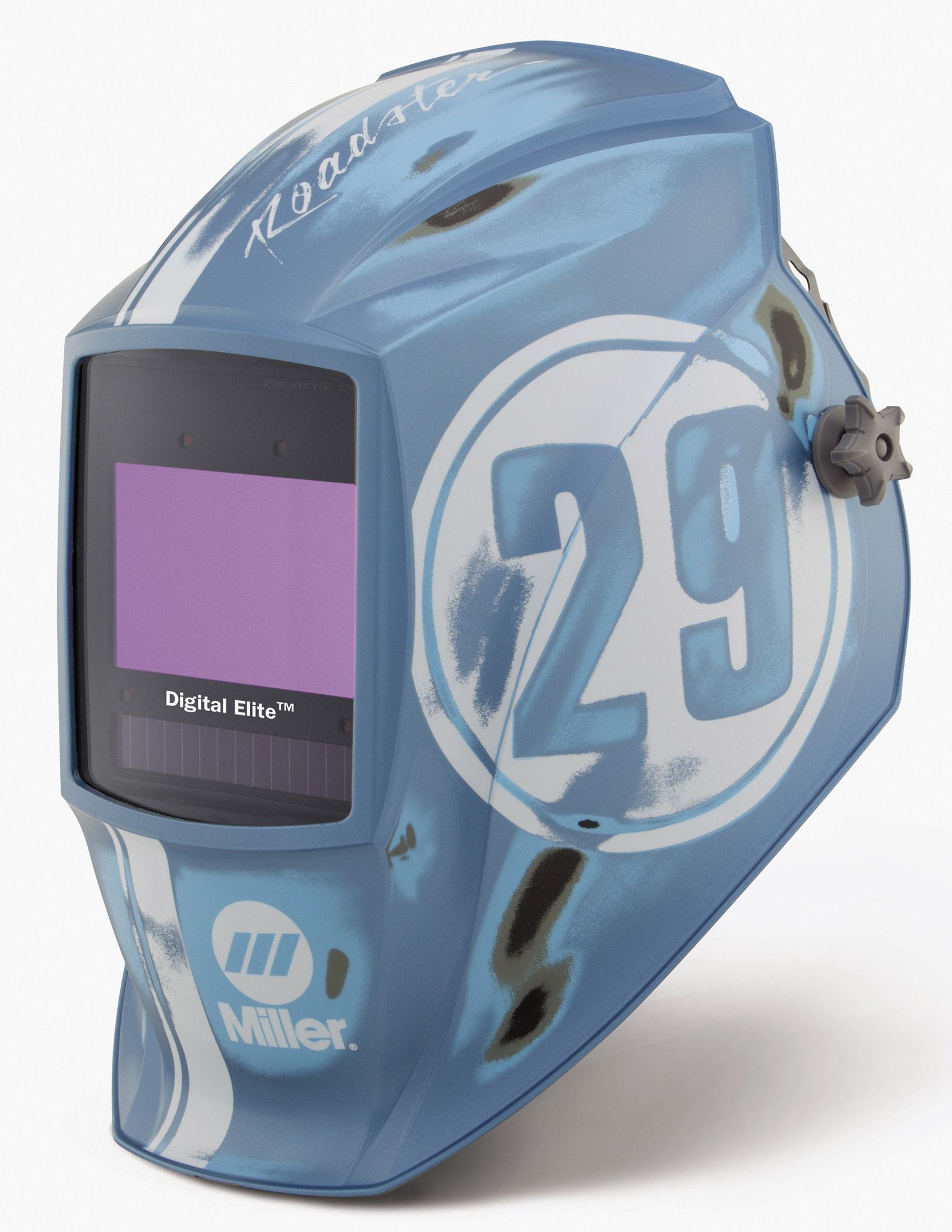

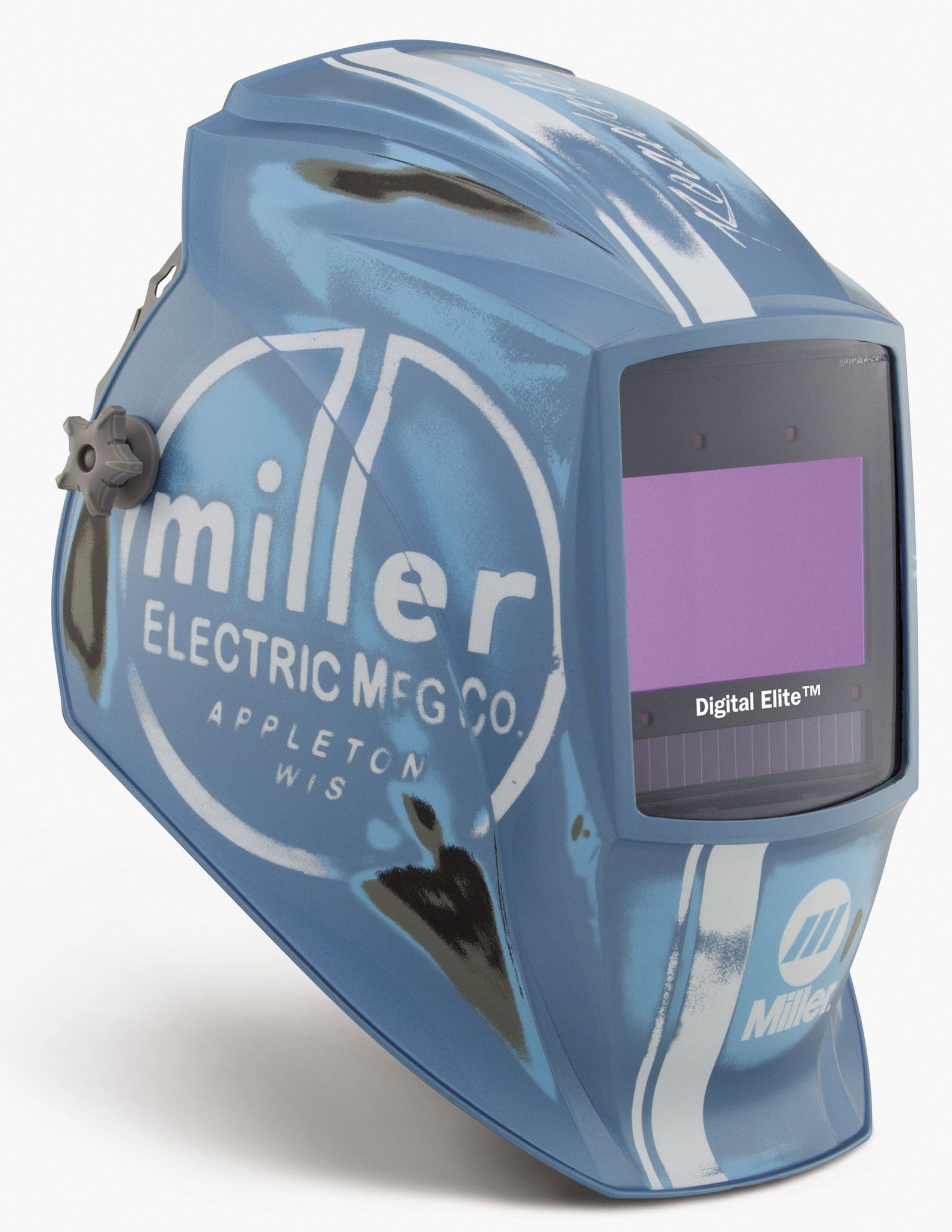

Miller 296768 Vintage Roadster Digital Elite ClearLight Lens Welding Helmet
$ 420.89
$ 465.38
Unit price
/
Unavailable
By Miller
Couldn't load pickup availability
Miller 281004 Vintage Roadster Digital Elite ClearLight Lens Welding Helmet
Miller 296768 Vintage Roadster Digital Elite ClearLight Lens Welding Helmet
Miller Digital Elite Welding Helmets have an auto darkening lens that can switch between shade 5-13. This welding helmet comes with a 3 year warranty and also has a newly designed headgear.
Included:
- 5 outside cover lenses
- 2 inside cover lenses
- Helmet bag
Features:
ClearLight™ Lens Technology
- Optimizes contrast and clarity in welding and light states
- 1/1/1/2 optical clarity rating allows for a lighter light state while not welding - keeping the helmet down - maximizing safety and productivity
For Arc Sensors
- Four independent arc sensors provide superior lens response for obstructed or low amp welding
Four Operating Modes
- Weld, cut, grind and X-Mode provide ultimate versatility
- X-Mode prevents sunlight from darkening the lens before welding starts and low-amperage lens opening from obstructed sensors
Headgear
- Provides extensive adjustability settings and a pivoting top for better fit and comfort
Digital Controls
- Easily allow welders to adjust shade, delay, and sensitivity
Auto-On/Off
- Lens automatically turns on at the strike of an arc
Aluminum Heat Shield
- Protects the lens in high amperage applications
Durable Shock-Absorbing Gasket
- Protects lens from drop impact
Meets ANSI Z87.1+, CSA and CE Standards
Specifications:
VIEWING AREA | 9.22 sq. in (59.48 sq. cm.) |
SHADES |
|
OPERATING MODES |
|
SENSORS | 4 |
TIG RATING | 5 amps and below |
SWITCHING SPEEDS | 1/20,000 sec. |
SHELL MATERIAL | Nylon |
NET WIDTH | 10.25" |
NET HEIGHT | 8.5" |
NET LENGTH | 12" |
NET WEIGHT | 18 oz. |
Accessories:
PRODUCT NUMBER | PRODUCT NAME |
217043 | Miller CR2450 Helmet Battery |
216326 | Miller Elite, MP-10, Titanium Front Cover Lens |
216327 | Miller Inside Cover Lens |
280056 | Miller ClearLight™ Auto-Darkening Lens for Elite Helmets |
256174 | Miller 2nd Generation Headgear |
253882 | Miller WeldX Helmet Bib |
259637 | Miller Slotted Hard Hat Adapter |
222003 | Miller Non-Slotted Hard Hat Adapter |
251018 | Miller Helmet Belt Hook |
282013 | Miller Helmet Light Accessory |
