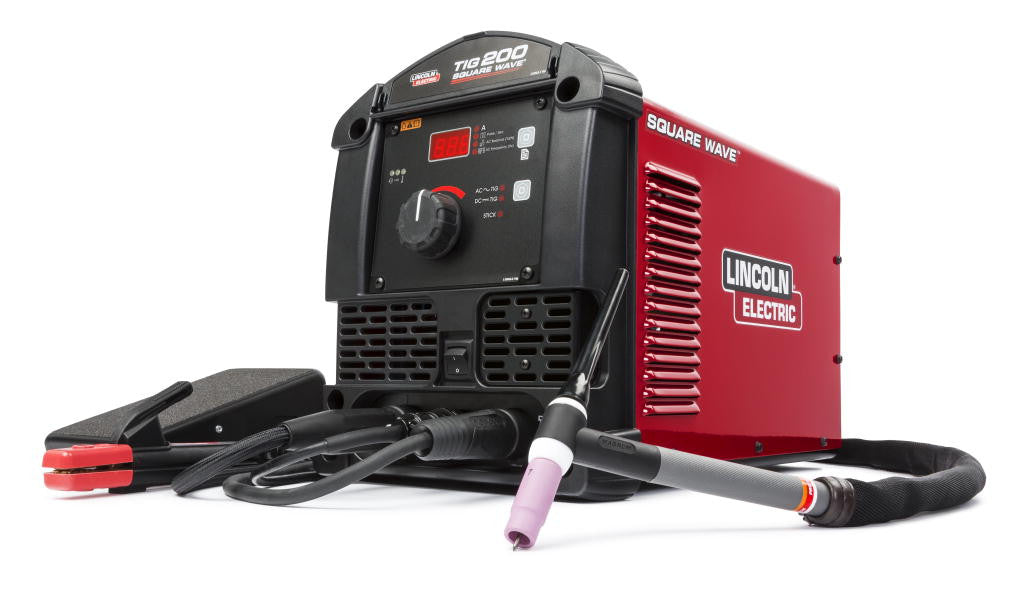

Lincoln K5126-1 Square Wave TIG 200 TIG Welder



The Square Wave® TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity.


It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed.


The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly.


A user-friendly interface enables the operators to set it, forget it and weld.


Input Power

  • 120/230/1/50/60



Processes

  • AC/DC TIG, Stick



Features & Benefits



ADVANCED FEATURES YET EASY TO USE



The user interface makes machines setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder - faster.



A GREAT TIG MACHINE FOR ALUMINUM

  • For a wider or tighter bead, users can easily adjust AC Frequency Control
  • AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials



TIG AND STICK FROM ONE POWER SOURCE

  • The multi-process machine can TIG weld when precision and bead appearance are important
  • Users also have the advantage of stick welding capability for outdoor work on thicker materials



TAKE IT EVERYWHERE, PLUG IN ANYWHERE™

  • Plug in the Square Wave TIG 200 where you need it
  • A standard 120V circuit or 230V for maximum output
  • Portable and convenient to use, only 46 lb (21 kg)



Specifications



INPUT POWER 120/230/1/50/60
RATED OUTPUT

120V:
TIG: 125A/25% (AC TIG 110A/25%)
TIG: 100A/40%
TIG: 85A/60%
Stick: 75A/20%
Stick: 65A/60%

230V:
TIG: 200A/25%
TIG: 160A/40%
TIG: 130A/60%
Stick: 170A/20%
Stick: 100A/60%
INPUT CURRENT

120V:
TIG: 25% Duty Cycle 21A
TIG: 40% Duty Cycle 17A
TIG: 60% Duty Cycle 14A
Stick: 20% Duty Cycle 19A
Stick: 60% Duty Cycle 16A

230V:
TIG: 25% Duty Cycle 22A
TIG: 40% Duty Cycle 17A
TIG: 60% Duty Cycle 13A
OUTPUT RANGE 120V:
TIG: 10-125A
Stick: 10-90A

230V:
TIG: 10-200A
Stick: 10-170A
DIMENSIONS (H X W X D) 14" x 10.75" x 19.25" (358 x 282 x 502 mm)
NET WEIGHT 46.50 lb (21.09 kg)



Included



  • PTA-17 TIG Torch Ready-Pak®
  • Foot Amptrol™
  • Gas Regulator/Flowmeter and 10 ft. (3 m) Gas Hose Kit
  • 200A Stick Electrode Holder
  • Ground Clamp and Cable
  • 120 and 230V Input Cords



Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
General K520 Lincoln Utility Cart (150 cu. ft. Bottle Capacity)
General K963-3 Lincoln Hand Amptrol™ Rotary Track Style, 6 Pin (25 ft)
General K2377-1 Lincoln Canvas Welder Cover - Small
TIG K1783-1 Lincoln PTA-26 TIG Torch (12.5 ft, 1 PC)
TIG K1622-1 Lincoln TIG Adapter Kit for PTA-9/PTA-17
TIG K1622-3 Lincoln TIG Torch Adapter Kit for PTA-26 Torches
General KP507 Lincoln PTA-9 TIG Torch Consumable Kit
General KP508 Lincoln PTA-17 TIG Torch Consumable Kit
General KP509 Lincoln PTA-26 and PTW-18 TIG Torch Consumable Kit
