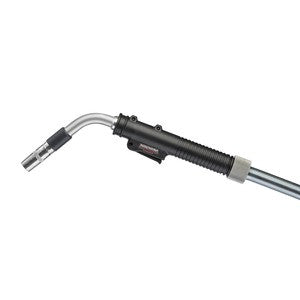

Lincoln K2652-1 Magnum PRO® 350 Welding Gun
$ 462.00
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K2632-1 Magnum PRO® 350 Welding Gun
SEMIAUTOMATIC AIR-COOLED GUNS
Magnum® PRO guns for MIG and fluxcored welding are specifically designed and tested for extreme environment welding applications. These guns are built for high amperage, high duty cycle applications where heat-resistance and fast serviceability are key.
Processes
- MIG, Pulsed MIG, Flux-Cored
Wire Diameter Range
- .035" - 5/64" (0.9-2.0 mm)
Features & Benefits
ALL GUNS ARE RATED AT 100% DUTY CYCLE
INDUSTRIAL GRADE CONSTRUCTION
-
High quality copper and aircraft grade aluminum parts ensure superior electrical contact and heat dissipation
- Four trigger leads are standard for fast field repair
- Patent-Pending Anti-Seize™ tip diffuser thread design reduces tip and diffuser seizing
- New gun cable retention system makes a positive bond that resists pulling apart
- Secure-Lock™ gun tube resists rotational slipping
LINCOLN COPPER PLUS® CONTACT TIPS
- Larger tip diameter and mass improves heat dissipation to increase tip life
COMFORT GRIP™ DESIGN
- Barrel-style handle is lightweight and balanced, providing a comfortable grip to reduce fatigue no matter how you hold the gun
LINCOLN PRO SELECT™ GUN SELECTION SYSTEM
-
Choose the right gun based on your actual welding amperage and application, not just your machine rating
- Save cost and weight while gaining maneuverability and fatigue-resistance
SIMPLIFED EXPENDABLE PARTS SELECTION
- 250/350A and 450/550A consumables are interchangeable across all gun models
Specifications
| K2652-1 | K2652-2-10-45 | K2652-2 | K2652-3 | K2652-4 | |
| DUTY CYCLE AT RATED AMPERAGE | 100% | 100% | 100% | 100% | 100% |
| RATED AMPERAGE | 350 |
350 | 350 |
350 |
350 |
| GUN TYPE | Handheld | Handheld | Handheld | Handheld | Handheld |
| CABLE LENGTH | 10 ft | 15 ft Ready-Pak | 15 ft | 20 ft | 25 ft |
| WIRE DIAMETER | .035" - 5/64" | .035" - 5/64" | .035" - 5/64" | .035" - 5/64" | .035" - 5/64" |
| COOLING | Air Cooled | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| NET WEIGHT | 7.45 lbs |
10.98 lbs | 9.73 lbs | 11.66 lbs | 13.76 lbs |
Included
K2652-1, K2652-2, K2652-3, K2652-4
- Contact Tip (Qty. 1) (KP2744-045)
- 0.625" (15.9 mm) Thread-On Gas Nozzle with 1/8" (3.2 mm) recess (KP2742-1-62R)
- Thread-On Diffuser (KP2746-1)
K2652-2-10-45
- Contact Tip (Qty. 1) (KP2744-045)
- 0.625" (15.9 mm) Thread-On Gas Nozzle with 1/8" (3.2 mm) recess (KP2742-1-62R)
- Thread-On Diffuser (KP2746-1)
- Gun Connector (K466-10)
- Gun Liner (KP44-3545-15)
Accessories
| CATEGORY | PRODUCT NUMBER | PRODUCT NAME |
| General | K3159-1 | Lincoln Magnum PRO Harness Adapter |
Expendable Parts
| PRODUCT NUMBER | PRODUCT NAME |
| K466-1 | Lincoln LN-7-8-9 & LN-25 Series Connector Kit |
| K466-10 | Lincoln Connector Kit - LF-72-74, LN-25 Pro, Power Feed 25M |
| K466-2 | Lincoln Tweco No.2, No. 3, No. 4 Gun Connector Kit |
| K466-3 | Lincoln Miller Feeder Gun Connector Kit |
| K466-6 | Lincoln Power MIG & Power Wave C300 Gun Connector Kit |
| K468-8 | Lincoln LN-8-9-1/16 & Larger Gun Connector Kit |
Contact Tips
Nozzles
Diffusers
| PRODUCT NUMBER | PRODUCT NAME |
| KP2746-1 | Lincoln 350A Thread-On Diffuser |
| KP3141-1 | Lincoln 350A Thread-On Diffuser |
| KP3360-1 | Lincoln 350A Thread-On Extended Reach Diffuser |
| KP2746-2 |
Lincoln 350A Slip-On Diffuser |
| KP2747-1 | Lincoln 550A Thread-On Diffuser |
| KP3155-1 | Lincoln 550A Thread-On 1/4" Recessed Diffuser |
| KP2747-2 | Lincoln 550A Slip-On Diffuser |
Insulator
| PRODUCT NUMBER | PRODUCT NAME |
| KP2773-2 | Lincoln 350A Gooseneck Insulator |
| KP2773-1 | Lincoln 550A Gooseneck Insulator |
Liners
| PRODUCT NUMBER | PRODUCT NAME |
| KP44-116-15 | Lincoln .052" - 1/16" Cable Liner (15 ft) |
| KP44-116-25 | Lincoln .052" - 1/16" Cable Liner (25 ft) |
| KP44-3545-15 | Lincoln .035" - .045" Cable Liner (15 ft) |
| KP44-3545-25 | Lincoln .035" - .045" Cable Liner (25 ft) |
| KP44-564-15 | Lincoln 1/16" - 5/64" Cable Liner (15 ft) |
| KP44-564-25 | Lincoln 1/16" - 5/64" Cable Liner (25 ft) |
| KP44N-3545-15 | Lincoln .035" - 3/64" Aluminum Cable Liner (15 ft) |
Gun Tubes
| PRODUCT NUMBER | PRODUCT NAME |
| KP2867-60 | Lincoln 60° Magnum Pro 350 Gun Tube |
| KP2867-45 |
Lincoln 45° Magnum Pro 350 Gun Tube |
