Lincoln K2624-1 Precision TIG® 375 TIG Welder Ready-Pak®

$ 14,651.00
By Lincoln Electric
View details

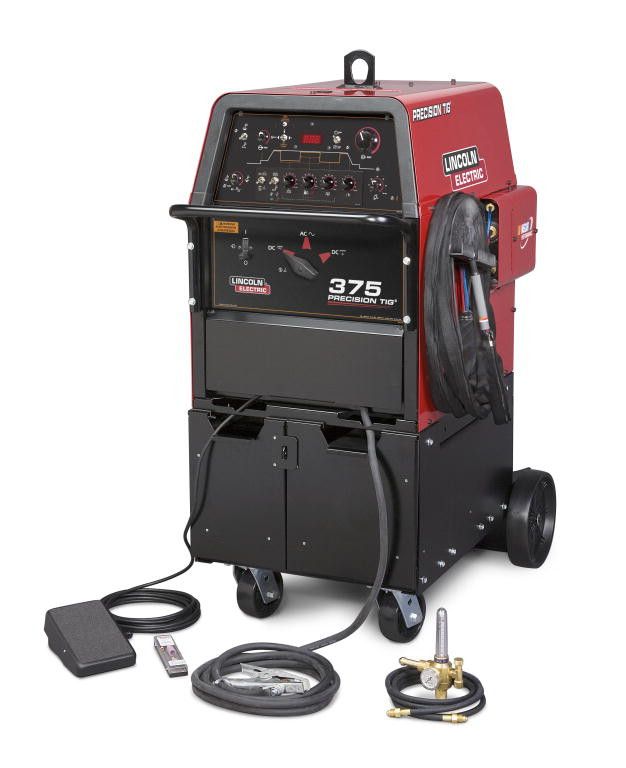

Lincoln K2624-1 Precision TIG® 375 TIG Welder Ready-Pak®





SIMPLICITY, CONTROL AND RANGE



When it's time for thicker materials and heavier jobs, choose the Precision TIG® 375, which provides for the highest duty cycle in its class. The Precision TIG 375 also features a built-in TIG pulser, that can be activated to help control heat input in the weld and reduce distortion and burn-through on thin materials. The Precision TIG 375 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.



Input Power

  • 208/230/460/1/60



Processes

  • Stick, TIG



Features & Benefits



SIMPLICITY THROUGH TECHNOLOGY

  • AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration for welding on aluminum
  • Take full control - adjust AC Balance® to increase or decrease cleaning action or penetration on aluminum



ADVANCED PULSE CONTROL PANEL (STANDARD ON THE PRECISION TIG 375)

  • Enable the TIG pulser to minimize material distortion from excessive heat input
  • The TIG pulser can also help moderate metal deposition for consistent bead appearance



WIDE OUTPUT RANGE

  • Tackle either end of the material thickness spectrum with an amperage range of 2 to 420 amps



SIDE-MOUNTED TORCH HOLDER AND CONNECTIONS

  • Enables simple cable management and protection, and a place for your torch when not in use



Specifications



INPUT POWER 208/230/460/1/60
RATED OUTPUT 375A/40%
350A/60%
INPUT CURRENT 40% Duty Cycle with PFC: 112/102/51A
60% Duty Cycle: 102/92/46A
OUTPUT RANGE 2-420A AC
2-420A DC
Max OCV: 80V
DIMENSIONS (H X W X D) 49.7" x 28" x 41" (1262 x 711 x 1041 mm)
NET WEIGHT 755 lbs (342.47 kg)





Included



Order a Lincoln Ready-Pak® and get everything you need to complete a welding package - all with one order number. Shipped fully assembled.



  • Under-Cooler Cart Water Cooler (K1828-1)
  • Foot Amptrol™ with 25 ft (7.6 m) cable assembly (K870)
  • Harris® Gas Regulator/Flowmeter and 10 ft (3.0 m) Hose Kit (3100211)
  • PTW-20 250 amp water cooled TIG torch w/ 25 ft (7.6 m) cable (K1784-4)
  • Zippered Torch Cover for TIG Torch with 25 ft (7.6 m) Cable Assembly (K918-2_
  • Parts Kit for PTW-20 Series Torches contains a long back cap, 1/16", 3/32", 1/8" collets, 1/16", 3/32" 1/8" collet bodies, 1/16", 3/32", 1/8" 2% Ceriated tungsten and three Alumina nozzles (5/16", 3/8", 7/16" orifices) (KP510)
  • Water Hose (2 included) (S19558-4)
  • 15 ft (4.5 m) 2/0 Work Cables and Clamp (K2150-1)



Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
Stick K704 Lincoln Accessory Kit - 400 Amp
Stick K857 Lincoln Remote Output Control - 25 ft
Stick K857-1 Lincoln Remote Output Control - 100 ft
TIG K4217-1 Lincoln Wireless Pedal for TIG Welding
TIG K963-3 Lincoln Hand Amptrol Rotary Track Style, 6 Pin (25 ft)
TIG K918-1 Lincoln 10' Zippered Cable Cover
TIG K1784-2 Lincoln PTW-18 TIG Torch - 25 ft
TIG
 K1784-3 Lincoln PTW-20 TIG Torch - 12.5 ft
TIG K1784-1 Lincoln PTW-18 TIG Torch - 12.5 ft
TIG K1784-4 Lincoln PTW-20 TIG Torch - 25 ft
TIG K1782-3 Lincoln PTA-17 TIG Torch (25 ft, 1 PC)
