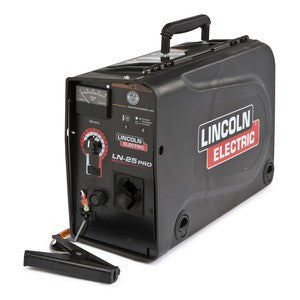

Lincoln K2613-5 LN-25 Standard Pro Wire Feeder
$ 4,486.00
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K2613-5 LN-25 Standard Pro Wire Feeder
LN-25 PRO series wire feeders are designed to be simple, reliable and easy to service. Whether you are an iron worker, pipeline welder, or weld at a construction site, shipbuilding facility or metal fabrication shop, we have the right semiautomatic wire feeder for you.
Processes:
- MIG, Flux Cored, STT® capability only with K2614-6 Dual Power Model
Features & Benefits
MAXTRAC® WIRE DRIVE SYSTEM
- Heavy-duty cast aluminum wire drive system provides reliable feeding and durability
DUAL RANGE WIRE FEED SPEED
-
Delivers greater precision at low end wire feed speeds
TRIGGER INTERLOCK SWITCH
- Provides operator comfort for long welds
REPLACEABLE AND FLAME RESISTANT CASE
- Rugged and durable case can be replaced in less than five minutes
PLOTTED PC BOARDS
- For moisture and corrosion protection
Specifications
| SOLID WIRE SIZE RANGE | .023" - 1/16" (0.6 - 1.6 mm) |
| CORED WIRE SIZE RANGE | .030" - 5/64" (0.8 - 2.0 mm) |
| WIRE SPEED RANGE IPM (M/MIN) | 50 - 700 ipm (1.3 - 17.7 m/min) |
| DIMENSIONS (H X W X D) | 15" x 8.7" x 23.2" (381 x 221 x 589 mm) |
| NET WEIGHT | 38 lbs (17.24 kg) |
Included
- Internal Contractor
- Gas Solenoid
- Flowmeter
- Arc Sensing Lead & Clip, 15 ft (4.5 m)
- 2 Gun Bushings (K1500-2 installed; K1500-1 loose)
Accessories
| CATEGORY | PRODUCT NUMBER | PRODUCT NAME |
| General | K126-11 |
Lincoln Pro Innershield 350A FCAW-SS Welding Gun (15 ft - 1/16" - 3/32") |
| General | K126-12 |
Lincoln Pro Innersheild 350A FCAW-SS Welding Gun (15 ft) |
| General | K466-10 |
Lincoln Connector Kit - LF-72-74, LN-25 Pro, Power Feed 25M |
| General | K1803-1 | Lincoln Weld Cable Package-Work Lead 2/0-TM & GC500-15 ft/Power Lead 2/0-TM & Lug - 10 ft |
| General | K1803-2 | Lincoln Weld Cable Package-Work & Power Lead 2/0-Tweco Male & GC500/Tweco Male & Lug - 10 ft |
| General | K910-1 | Lincoln GC-300 Work Clamp - 300A, 60% Duty Cycle |
| General | K910-2 | Lincoln GC-500 Work Clamp - 500A, 60% Duty Cycle |
| General | K435 | Lincoln Spindle Adapter for 14 lbs Coils |
| General | K852-95 | Lincoln Twist Mate Plug for 2/0-3/0 Cable |
| General |
K1500-1 | Lincoln Gun Receiver Bushing for Lincoln Electric Guns |
| General | K1500-2 | Lincoln Gun Receiver Bushing for Tweco #2 - #4 Guns |
Drive Rolls
| PRODUCT NUMBER | PRODUCT NAME |
| KP1696-030S | Lincoln .023" - .030" Solid Wire Drive Roll Kit |
| KP1696-035S | Lincoln .035" Solid Wire Drive Roll Kit |
| KP1696-045S | Lincoln .045" Solid Wire Drive Roll Kit |
| KP1696-052S | Lincoln .052" Solid Wire Drive Roll Kit |
| KP1696-1 | Lincoln .035" - .045" Solid Wire Combination Drive Roll Kit |
| KP1696-1/16S | Lincoln 1/16" Solid Wire Drive Roll Kit |
| KP1697-035C | Lincoln .030" - .035" Cored Wire Drive Roll Kit |
| KP1697-045C | Lincoln .040" - .045" Cored Wire Drive Roll Kit |
| KP1697-052C | Lincoln .052" Cored Wire Drive Roll Kit |
| KP1697-1/16C | Lincoln 1/16" Cored Wire Drive Roll Kit |
| KP1697-068 | Lincoln .068" - .072" Cored Wire Drive Roll Kit |
| KP1697-5/64 | Lincoln 5/64" Solid/Cored Wire Drive Roll Kit |
| KP1697-3/32 | Lincoln 3/32" Solid/Cored Wire Drive Roll Kit |
| KP1695-035A | Lincoln .035" Aluminum Wire Drive Roll Kit |
| KP1695-1/16A | Lincoln 1/16" Aluminum Wire Drive Roll Kit |
| KP1695-3/64A | Lincoln 3/64" Aluminum Wire Drive Roll Kit |
Cables
| PRODUCT NUMBER | PRODUCT NAME |
| K1840-10 |
Lincoln Weld Power Cable - Twist Mate to Lug (1/0, 350A, 60%) - 10 ft |
| K1842-35 |
Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 35 ft |
