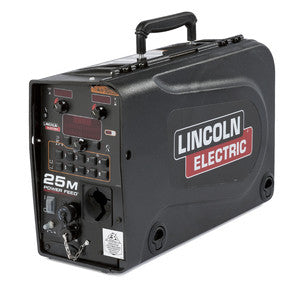

Lincoln K2536-5 Power Feed® 25M Plastic Case Wire Feeder
$ 5,180.00
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K2536-5 Power Feed® 25M Plastic Case Wire Feeder
ADVANCED PROCESS CONTROL. RUGGED, PORTABLE DESIGN
This compact shop or construction wire feeder is a push-pull capable for premium aluminum welding. Featuring our MAXTRAC® drive system, full controls and procedural memory presets, the Power Feed® 25M is ready for advanced process welding on almost any application.
Processes:
- MIG, Pulsed, STT®, Flux Cored, TIG, Gouging, Stick
Features & Benefits
PUSH-PULL FUNCTIONALITY
- Delivers premier aluminum performance by offering uniform feeding, as well as the ability to extend gun to feeder distance
INTERNAL LIGHTING
-
Illuminates the wire drive for working in dark environments
INTERNAL HEATING
- Maintains control of humidity by keeping consumables warmed and protected within enclosed case
DUAL PROCEDURE AND MEMORY BUTTONS
- Allow you to set an A and B procedure to simplify 'on the-fly' switching
- Allows the operator to easily recall a waveform and specify the range of operation for the application
COMPACT CASE DESIGN
- Fits through a 16" (406 mm) diameter or 12" x 18" (305 x 457 mm) opening
- Ideal for construction and shipbuilding
Specifications
| SOLID WIRE SIZE RANGE | Standard: .023" - 1/16" (0.6 - 1.6 mm) Extra-torque: .023" - 1/16" (0.6 - 1.6 mm) |
| CORED WIRE SIZE RANGE | Standard: .030" - 5/64" (0.8 - 2.0 mm) Extra-torque: .030" - 3/32" (0.8 - 2.4 mm) |
| WIRE SPEED RANGE IPM (M/MIN) | Standard: 50 - 800 ipm (1.3 - 20.3 m/min) Extra-torque: 30 - 400 ipm (0.8 - 10.2 m/min) |
| DIMENSIONS (H X W X D) | 14.5" x 8.5" x 23.5" (368 x 216 x 597 mm) |
| NET WEIGHT | 36 lbs (16.33 kg) |
Included
- Flow Meter
- Gas Solenoid
- Gun Bushing
- Dual Procedure and Memory
- Electrode Pigtail
Accessories
| CATEGORY | PRODUCT NUMBER | PRODUCT NAME |
| General | K590-6 | Lincoln Water Connection Kit |
| General | K2910-1 | Lincoln 12-Pin to 7-Pin Adapter |
| TIG | K870-2 | Lincoln Foot Amptrol™ - 12 Pin (25 ft) |
| General | K1500-1 | Lincoln Gun Receiver Bushing for Lincoln Electric Guns |
| General | K1500-2 | Lincoln Gun Receiver Bushing for Tweco #2 - #4 Guns |
Drive Rolls
| PRODUCT NUMBER | PRODUCT NAME |
| KP1696-030S | Lincoln .023" - .030" Solid Wire Drive Roll Kit |
| KP1696-035S | Lincoln .035" Solid Wire Drive Roll Kit |
| KP1696-045S | Lincoln .045" Solid Wire Drive Roll Kit |
| KP1696-052S | Lincoln .052" Solid Wire Drive Roll Kit |
| KP1696-1 | Lincoln .035" - .045" Solid Wire Combination Drive Roll Kit |
| KP1696-1/16S | Lincoln 1/16" Solid Wire Drive Roll Kit |
| KP1697-035C | Lincoln .030" - .035" Cored Wire Drive Roll Kit |
| KP1697-045C | Lincoln .040" - .045" Cored Wire Drive Roll Kit |
| KP1697-052C | Lincoln .052" Cored Wire Drive Roll Kit |
| KP1697-1/16C | Lincoln 1/16" Cored Wire Drive Roll Kit |
| KP1697-068 | Lincoln .068" - .072" Cored Wire Drive Roll Kit |
| KP1697-5/64 | Lincoln 5/64" Solid/Cored Wire Drive Roll Kit |
| KP1697-3/32 | Lincoln 3/32" Solid/Cored Wire Drive Roll Kit |
| KP1695-035A | Lincoln .035" Aluminum Wire Drive Roll Kit |
| KP1695-1/16A | Lincoln 1/16" Aluminum Wire Drive Roll Kit |
| KP1695-3/64A | Lincoln 3/64" Aluminum Wire Drive Roll Kit |
Cables
| PRODUCT NUMBER | PRODUCT NAME |
| K1543-8 | Lincoln ArcLink/Linc-Net Control Cable - 8 ft |
| K1543-25 | Lincoln ArcLink/Linc-Net Control Cable - 25 ft |
| K1543-50 | Lincoln ArcLink/Linc-Net Control Cable - 50 ft |
| K2683-25 | Lincoln Heavy Duty ArcLink Control Cable - 25 ft |
| K1842-35 | Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 35 ft |
