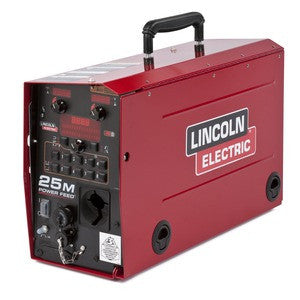

Lincoln K2536-4 Power Feed® 25M Aluminum Case Wire Feeder

$ 5,180.00

Lincoln K2536-4 Power Feed® 25M Aluminum Case Wire Feeder





ADVANCED PROCESS CONTROL. RUGGED, PORTABLE DESIGN



This compact shop or construction wire feeder is a push-pull capable for premium aluminum welding. Featuring our MAXTRAC® drive system, full controls and procedural memory presets, the Power Feed® 25M is ready for advanced process welding on almost any application.



Processes:

  • MIG, Pulsed, STT®, Flux Cored, TIG, Gouging, Stick



Features & Benefits



PUSH-PULL FUNCTIONALITY

  • Delivers premier aluminum performance by offering uniform feeding, as well as the ability to extend gun to feeder distance


INTERNAL LIGHTING

  • Illuminates the wire drive for working in dark environments


INTERNAL HEATING

  • Maintains control of humidity by keeping consumables warmed and protected within enclosed case


DUAL PROCEDURE AND MEMORY BUTTONS

  • Allow you to set an A and B procedure to simplify 'on the-fly' switching
  • Allows the operator to easily recall a waveform and specify the range of operation for the application



COMPACT CASE DESIGN

  • Fits through a 16" (406 mm) diameter or 12" x 18" (305 x 457 mm) opening
  • Ideal for construction and shipbuilding


Specifications



SOLID WIRE SIZE RANGE Standard: .023" - 1/16" (0.6 - 1.6 mm)
Extra-torque: .023" - 1/16" (0.6 - 1.6 mm)
CORED WIRE SIZE RANGE Standard: .030" - 5/64" (0.8 - 2.0 mm)
Extra-torque: .030" - 3/32" (0.8 - 2.4 mm)
WIRE SPEED RANGE IPM (M/MIN) Standard: 50 - 800 ipm (1.3 - 20.3 m/min)
Extra-torque: 30 - 400 ipm (0.8 - 10.2 m/min)
DIMENSIONS (H X W X D) 14.5" x 8.5" x 23.5" (368 x 216 x 597 mm)
NET WEIGHT 36 lbs (16.33 kg)



Included



  • Flow Meter
  • Gas Solenoid
  • Gun Bushing
  • Dual Procedure and Memory
  • Electrode Pigtail



Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
General K590-6 Lincoln Water Connection Kit
General K2910-1 Lincoln 12-Pin to 7-Pin Adapter
TIG K870-2 Lincoln Foot Amptrol™ - 12 Pin (25 ft)
General K1500-1 Lincoln Gun Receiver Bushing for Lincoln Electric Guns
General K1500-2 Lincoln Gun Receiver Bushing for Tweco #2 - #4 Guns



Drive Rolls



PRODUCT NUMBER PRODUCT NAME
KP1696-030S Lincoln .023" - .030" Solid Wire Drive Roll Kit
KP1696-035S Lincoln .035" Solid Wire Drive Roll Kit
KP1696-045S Lincoln .045" Solid Wire Drive Roll Kit
KP1696-052S Lincoln .052" Solid Wire Drive Roll Kit
KP1696-1 Lincoln .035" - .045" Solid Wire Combination Drive Roll Kit
KP1696-1/16S Lincoln 1/16" Solid Wire Drive Roll Kit
KP1697-035C Lincoln .030" - .035" Cored Wire Drive Roll Kit
KP1697-045C Lincoln .040" - .045" Cored Wire Drive Roll Kit
KP1697-052C Lincoln .052" Cored Wire Drive Roll Kit
KP1697-1/16C Lincoln 1/16" Cored Wire Drive Roll Kit
KP1697-068 Lincoln .068" - .072" Cored Wire Drive Roll Kit
KP1697-5/64 Lincoln 5/64" Solid/Cored Wire Drive Roll Kit
KP1697-3/32 Lincoln 3/32" Solid/Cored Wire Drive Roll Kit
KP1695-035A Lincoln .035" Aluminum Wire Drive Roll Kit
KP1695-1/16A Lincoln 1/16" Aluminum Wire Drive Roll Kit
KP1695-3/64A Lincoln 3/64" Aluminum Wire Drive Roll Kit



Cables



PRODUCT NUMBER PRODUCT NAME
K1543-8 Lincoln ArcLink/Linc-Net Control Cable - 8 ft
K1543-25 Lincoln ArcLink/Linc-Net Control Cable - 25 ft
K1543-50 Lincoln ArcLink/Linc-Net Control Cable - 50 ft
K2683-25 Lincoln Heavy Duty ArcLink Control Cable - 25 ft
K1842-35 Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 35 ft
