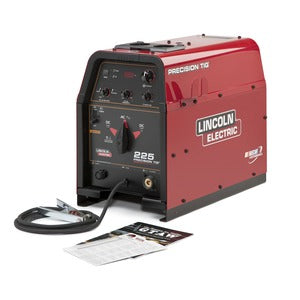

Lincoln K2533-2 Precision TIG® 225 TIG Welder

$ 4,739.00
By Lincoln Electric
View details

Lincoln K2533-2 Precision TIG® 225 TIG Welder





SIMPLE TO USE, EASY TO CUSTOMIZE



Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with out patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.



Features and Benefits:



SIMPLICITY

  • Easy-to-use operator interface - select mode, polarity and begin welding
  • When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration



ADJUST FOR ANY SITUATION: CLEANING, PENETRATION AND PULSE

  • When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control
  • Enable the TIG pulser feature to minimize material distortion from excessive heat input
  • The TIG pulser can also help moderate filler metal deposition for consistent bead appearance



SUPERIOR STICK WELDER

  • Also offers outstanding stick welding capabilities, including the use of up to 5.32" (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010)



Specifications:



INPUT POWER 460/575/1/60
RATED OUTPUT
  • 130A/40%
  • 110A/60%
INPUT CURRENT
  • 40% Duty Cycle: 28/22
  • 60% Duty Cycle: 23/19
OUTPUT RANGE
  • 5-230A AC
  • 5-230A DC
  • Max OCV: 75V
DIMENSIONS (H X W X D) 20.7" x 14.5" x 25.6" (526 x 368 x 650 mm)
NET WEIGHT 192 lbs (87.09 kg)



Included:



  • Torch Parts Storage Compartment
  • Torch Hanger
  • 10 ft. (3.0 m) Work Cable & Clamp
  • Removable Lift Eye
  • 9 ft. (2.7 m) Input Power Cord
  • NEMA 6-50R Receptacle
  • TIG Procedure Guide
  • GTAW (TIG) Handbook



Accessories:



CATEGORY PRODUCT NUMBER PRODUCT NAME
Stick K2374-1 Lincoln Stick Electrode Holder and Cable
TIG K4217-1 Lincoln Wireless Pedal for TIG Welding
TIG K1781-9 Lincoln PTA-9 Ultra Flex TIG Torch, 12.5'
TIG K1782-12 Lincoln PTA-17 Ultra Flex TIG Torch, 12.5'
TIG K1784-3 Lincoln PTW-20 TIG Torch, 12.5'
TIG K1784-4 Lincoln PTW-20 TIG Torch, 25 ft
TIG K1782-3 Lincoln PTA-17 TIG Torch, (25 ft, 1 PC)
TIG KP2414-1 Lincoln Gas Lens Kit for PTA-9 and PTW-20
TIG KP508 Lincoln PTA-17 TIG Torch Consumable Kit
TIG KP510 Lincoln PTW-20 TIG Torch Consumable Kit
TIG K1622-1 Lincoln TIG Adapter Kit for PTA-9/PTA-17
TIG K1622-4 Lincoln TIG Adapter Kit for PTW-18/PTW-20
TIG K963-3 Lincoln Hand Amptorl™ Rotary Track Style, 6 Pin
TIG K870 Lincoln Foot Amptrol - 25 ft
TIG K1813-1 Lincoln Cool-Arc 40 115/1/50/60
TIG K2266-1 Lincoln TIG-Mate 17 Air-Cooled TIG Torch Starter Kit
TIG K2267-1 Lincoln TIG-Mate 20 Water Cooled TIG Torch Starter Pack
TIG K814 Lincoln Arc Start Switch
TIG K918-1 Lincoln 10' Zippered Cable Cover
TIG K918-2 Lincoln 22' Zippered Cable Cover
