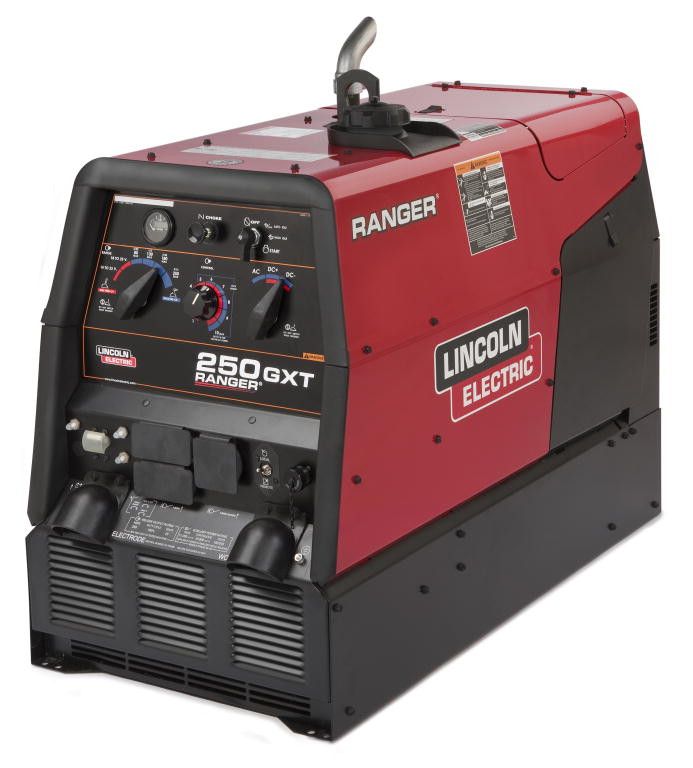

Lincoln K2382-4 Ranger® 250 GXT Engine Driven Welder

$ 7,919.00
By Lincoln Electric
View details



Lincoln K2382-4 Ranger® 250 GXT Engine Driven Welder (Kohler w/ Electric Fuel Pump





EXTRA POWER, EXTRA PERFORMANCE



Get all of the XTras needed for construction and maintenance work. That's XTra welding performance with 250 amps for AC or DC stick and DC wire welding and XTra power with up to 11,000 watts peak for lights, grinders or high amperage equipment. You also get XTra protection and quiet operation with the Lincoln enclosed case.



Processes:

  • Stick
  • TIG
  • MIG
  • Flux-Cored
  • Gouging



Features & Benefits:



TOTALLY ENCLOSED CASE



  • Engine is fully protected
  • 3 service access doors
  • Low Noise - 76.4 dBA sound level at 23 ft. (7 m) 100.7 dB sound power (Lwa) at rated output
  • Choose from painted, camo wrapped, or stainless steel roof, case sides and engine doors



VERSATILE AC/DC WELDING



  • AC/DC welding output for a broad range of stick electrode types
  • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding
  • MIG and Flux-Cored capable (with optional equipment)
  • Remote ready! 6-pin connector and local/remote switch for remote control operation



11,000 WATTS PEAK SINGLE-PHASE AC GENERATOR POWER



  • Peak for motor starting
  • 10,000 watts continuous power for generator, plasma cutter or inverter welder
  • Lights, grinder, power tools



23 HP KOHLER® GASOLINE ENGINE



  • 2 cylinder, 4 cycle overhead valve air-cooled design
  • Electric fuel pump avoids vapor lock
  • Oil drain extension for easy oil changes
  • 12 gallon tank for extended run times
  • Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling



RUGGED RELIABILITY



  • Welding and AC Generator Outputs Rated at 104°F (40°C)



Specifications:



RATED OUTPUT 250A AC/25V/100%
250A DC/25V/100%
OUTPUT RANGE 50-250A AC/DC
GENERATOR OUTPUT 11000 watts peak, 10000 watts continuous
TYPE OF ENGINE Kohler OHV Command CH730
HP AND SPEED 23@3500
CYLINDERS 2
DIMENSIONS (H X W X D) 29.9" x 21.5" x 42.3" ( 759 x 546 x 1074 mm)
NET WEIGHT 602 lb (273.07 kg)



Key Controls:





  1. Electric Fuel Gauge and Engine Hour Meter
  2. 6 Position Output Range Selector
  3. Circuit Breakers
  4. 120 Volt AC Receptacles (NEMA 5-20R)
  5. Output Stud Covers
  6. Ground stud
  7. 120/240 Volt AC Full KVA Receptacle (NEMA 14-50R)
  8. 6-Pin Remote Connector
  9. Local/Remote Switch
  10. Polarity Switch
  11. Fine Output Control
  12. Engine Choke Control (Stainless Steel Cable)
  13. Engine Start Switch with Idler Control



Accessories:



CATEGORY PRODUCT NUMBER PRODUCT NAME
General K1690-1 Lincoln GFCI Receptacle Kit
General K1898-1 Lincoln Spark Arrester Kit
Stick K704 Lincoln Accessory Kit - 400 AMP
Stick K857 Lincoln Remote Output Control - 25 ft
Stick K857-1 Lincoln Remote Output Control - 100 ft
TIG K870 Lincoln Foot Amptrol
TIG K963-3 Lincoln Hand Amptrol Rotary Track Style
Plasma Cutter K2808-1 Lincoln Tomahawk 1000 Plasma Cutter



Wire Feeders:



PRODUCT NUMBER PRODUCT NAME
K2473-2 Lincoln Power MIG 180C MIG Welder
K3269-1 Lincoln Magnum Pro 100SG Spool Gun
