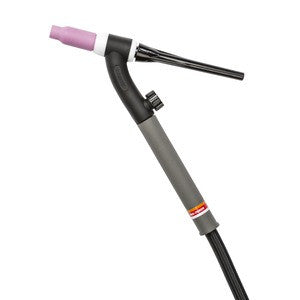

Lincoln K1782 PTA-17FV Gas Valve Flexible Head TIG Torch

$ 211.00

Size

Lincoln K1782 PTA-17FV Gas Valve Flexible Head TIG Torch




PREMIUM AIR-COOLED TORCHES


Light and easy to use, these torches give you the power of maximum versatility and maneuverability. A molded, knurled handle gives you a sure grip so you can focus on the weld. "F" model torches feature flexible heads to increase your comfort and get you into tighter spaces. "V" model torches provide a convenient gas control valve to turn off and on shielding gas at the torch. Whether you are an occasional TIG welder, fabrication shop or production welder, Pro-Torch™ TIG torches are right for you.



Features & Benefits



  • "F" model torches feature flexible heads for significantly greater comfort and access to tight spaces
  • "V" model torches have a convenient gas control valve on the torch to quickly and easily control the shielding gas flow when a gas solenoid valve is not "built-in" to the power source
  • Meet the performance needs of the professional
  • Comfortable knurled handle for a non-slip sure grip for precise control of TIG Torch
  • Molded lip/ridge on the torch handle for easy connecting of a zippered cable cover
  • Allows cable cover to be securely attached to torch handle
  • All Pro-Torch™ TIG torches are made from the highest quality materials to assure high performance and long life
  • One year Lincoln warranty on torch



Specifications



K1782-11 K1782-13
DUTY CYCLE AT RATED AMPERAGE 60% 60%
RATED AMPERAGE 150 150
TUNGSTEN RANGE .020" - 5/32" (0.5 - 4.0 mm) .020" - 5/32" (0.5 - 4.0 mm)
GUN TYPE Handheld Handheld
CABLE LENGTH 25 ft 12.5 ft
NUMBER OF CABLES 1 1
COOLING Air Cooled Air Cooled
NET WEIGHT 4.5 lbs (2.04 kg) 3 lbs (1.36 kg)



Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
General KP508
Lincoln PTA-17 TIG Torch Consumable Kit
General K918-1 Lincoln 10' Zippered Cable Cover
General K918-2 Lincoln 22' Zippered Cable Cover
General K963-3 Lincoln Hand Amptrol Rotary Track Style, 6-Pin (25 ft)
General K814 Lincoln Arc Start Switch
General K960-2 Lincoln Small Twist Mate Torch Adapter (with separate gas)
General K1622-1 Lincoln TIG Adapter Kit for PTA-9/PTA-17
