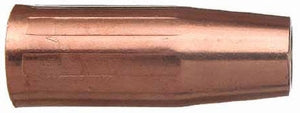

Tweco 21-50F (1210-1112) 21 Series 1/2" Standard Thread-On Tip Flush Nozzle (2 Pack)

$ 46.16
By Tweco
View details

Tweco 21-50F (1210-1112) 21 Series 1/2" Standard Thread-On Tip Flush Nozzle (2 Pack)





Professional & Weldskill 21 Series Air Cooled Slip-On Nozzles are self insulated and offered in thread-on or slip-on (REL) variants.





3-Piece Nozzle Design Includes:



  • Nozzle Housing - Cut and Formed form 122 DHP copper alloy tubing
  • Nozzle Insert - machined from a solid brass alloy and machining the internal threads to match the gas diffuser
  • Nozzle Insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser



(Call for high usage quote - 641-201-1352)



Features:



  • Used in light to medium duty welding applications up to 180 amps
  • Easy identification - Part No. rolled stamped on the outside surface
  • Tapered nozzle 3-pieces design - does not require an additional insulator
  • Nozzle threads onto the gas diffuser



Specifications:



PART NUMBER 21-50F
MODEL 1210-1112
SERIES 21
COOLING Air
INSIDE DIAMETER 1/2" (12.7 mm)
NOZZLE DESIGN Standard
NOZZLE STYLE Thread-On
NOZZLE/CONTACT TIP RELATIONSHIP Flush to 1/16" (1.6 mm) Tip Recess
OUTSIDE DIAMETER 0.750" (19.05 mm)



Variants:



 PART NUMBER MODEL INSIDE DIAMETER NOZZLE DESIGN NOZZLE/CONTACT TIP RELATIONSHIP
21-37 1210-1100 3/8" (9.5 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
21-37F 1210-1102 3/8" (9.5 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
21T-37 1210-1300 3/8" (9.5 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
21T-37F 1210-1302 3/8" (9.5 mm) Tapered Flush to 1/16" (1.6 mm) Tip Recess
21-50 1210-1110 1/2" (12.7 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
21-50F 1210-1112 1/2" (12.7 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
21-62 1210-1120 5/8" (15.9 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
21-62F 1210-1122 5/8" (15.9 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
