Optrel 1008.001 Weldcap® RC Bump Cap 3/9-12 Automatic Welding Helmet

$ 177.32 $ 208.12
By Optrel

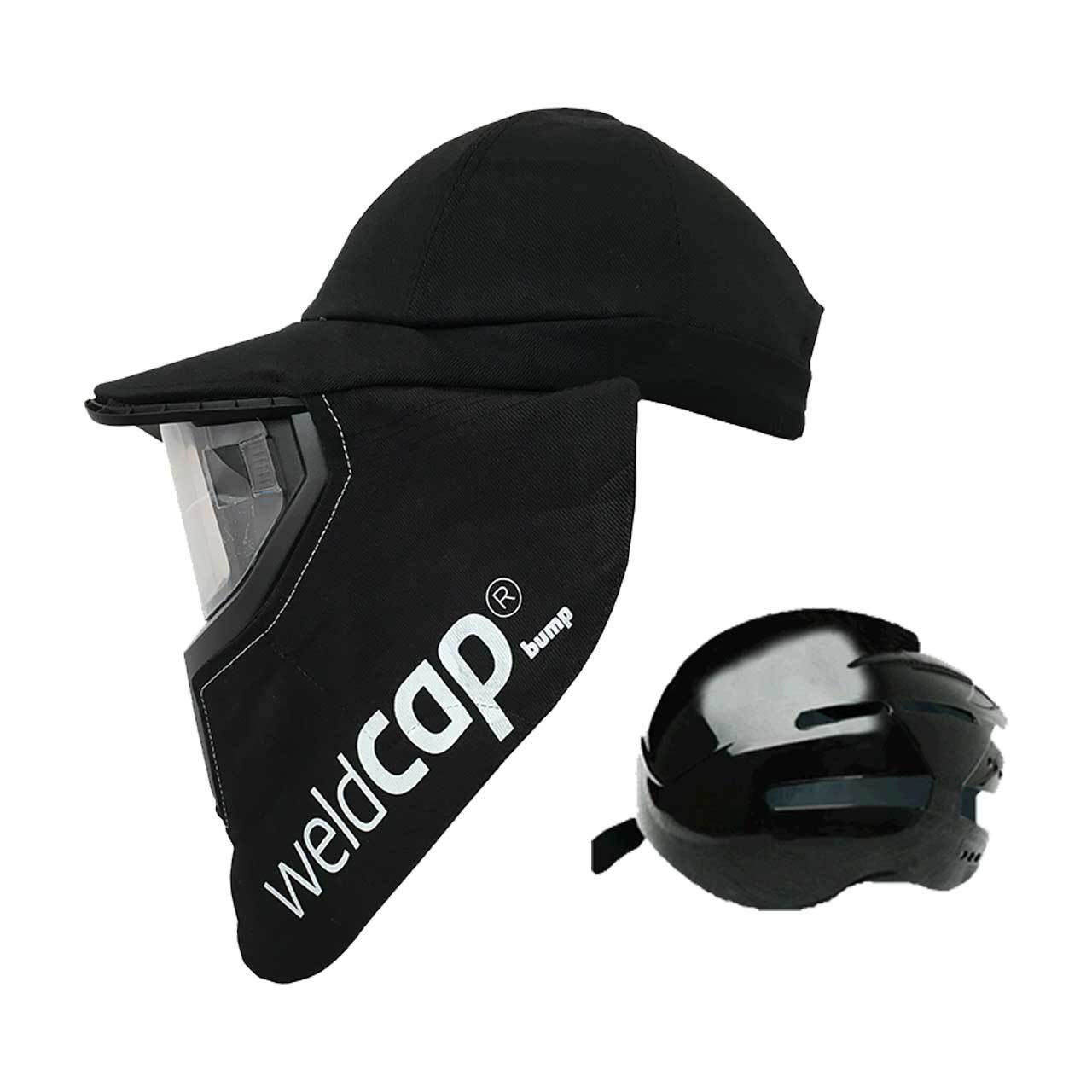

Optrel 1008.001 Weldcap® RC Bump Cap 3/9-12 Automatic Welding Helmet







While normal autodarkening hoods protect only part of the head, the Weldcap® bump now completely protects the crown of the head against painful strikes. The bump cap also provides additional stability and a feeling of safety like a full-face helmet, without getting noticeably heavier.



The revolutionary Optrel Weldcap® RC 3/9-12, that combines the comfort of a baseball cap with the advantages of an automated welding helmet (ADF), is now available in a new extended version: the Optrel Welcap® Bump RCB 3/9-12.



The easy to remove textile part is made from washable and non-flammable material. You can buy it separately, which means you can turn any existing Weldcap® into a Weldcap® Bump and vice-versa.



Features:



EXTENSIVE FIELD OF VIEW

  • By expanding both the lateral and horizontal fields of vision, the welders' performance and safety is increased



MULTI-PURPOSE USE AT MAXIMUM PROTECTION

  • Welding: Darkening levels from 9 to 12 cover the majority of welding applications
  • Grinding: With its Shade level 3 in inactive mode, the welder has a bright and well-lit view of the work-place. This features the Optrel Weldcap® perfect for grinding job as well.



MINIMAL WEIGHT

  • The Optrel Weldcap® weighs only 14.5 oz. and is an absolute lightweight
  • Since the ADF is closer to the eyes, the weight of the product moves closer to its center of gravity, increasing its stability and balance
  • The design eliminates pressure points and reduces strain on the welder's neck



SWIFT HANDLING

  • Like a cap; easy to mount and unmount again
  • Stow it in the Optrel Parking Buddying, when it's not in use



Spare Parts & Accessories:



ITEM NUMBER ITEM NAME
5002.740 Optrel Weldcap® Starter Kit
5002.900 Optrel Parking Buddy
9410.043.00 Optrel Bag
5000.260 Optrel Front Cover Lens Weldcap® Series (5 Pack)
5002.810 Optrel Spare Textile Weldcap® Bump
5000.040 Optrel Inside Cover Lens Weldcap® Series (5 Pack)
5002.720 Optrel Battery Cap Weldcap® Series (2 Pack)
5002.700 Optrel Nose Support Weldcap® Series (2 Pack)





 Technical Data:



SHADE LEVELS
  • Grind Mode / Inactive: Shade Level 3
  • Active: Shade Levels 9-12
POWER SUPPLY  2 pcs batteries 3V exchangeable
OPERATING TIME BATTERIES 1'000h operating time
SENSORS Wide detection sensor
SWITCHING TIME
  • Light to Dark: 0.16 ms at room temp
  • Light to Dark:  0.11 ms at 131 °F
  • Dark to Light: 0.3 s
VIEWING AREA Improved wide viewing area due to nose cut-out
CLASSIFICATION-E379
  • Optical Class: 1
  • Diffusion of Light Class: 1
  • Variations in Luminous Transmittance Class: 2
  • Angle Dependance of Luminous Transmittance Class: 2
CLASSIFICATION (TEXTILE)
  • Class 1
  • Class A/B/C1/E3/F1
CLASSIFICATION
  • EZ175 / AS / NZS 1337.1 - Weldcap face shield, Class F
  • EN 166 / AS / NZS 1337/1 - Front Cover Lens, Class B
  • ANSI Z87.1 - Impact resistance, Class Z87+
SHAPE STABILITY
  • Welding mask: up to 356 °F
  • Front Cover Lens: up to 275 °F
EYE PROTECTION  Ultraviolet / Infrared Protection: max protection at any shade level
OPERATING TEMP 14 °F to 140 °F
STORAGE TEMP -4 ° F bid 176 °F
WEIGHT  400 g
STANDARDS CE (EN 379, EN 166, EN 175) ANSI Z87.1, AS/NZS 1337/1338
WARRANTY 2 years (except textile and batteries)
