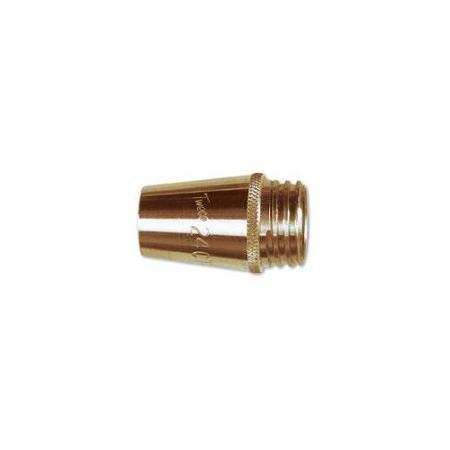

Tweco 24FN-50S (1240-1714) 24FN Series 1/2" Standard Short Stop Tip Recess Fine Thread Nozzle (2 Pack)

$ 33.36
By Tweco
View details

Tweco 24FN-50S (1240-1714) 24FN Series 1/2" Standard Short Stop Tip Recess Fine Thread Nozzle (2 Pack)





Professional & Weldskill 24 Series Air Cooled Nozzles offered in 2 Piece, coarse (CT) and fine thread (FN) series, as well as slip-on (A).



  • 2-Piece Nozzle require 34FN insulator (Sold Separately)



(Call for high usage quote - 641-201-1352)



Features:



  • Coarse Thread Nozzle
  • Used in light to medium duty welding applications up to 400 amp
  • Formed and 3-piece nozzle designs
  • Easy identification - Part No. rolled stamped on the outside surface
  • Tapered nozzle 3-piece design - does not require an additional insulator
  • Nozzle threads onto the conductor tube



Specifications:



PART NUMBER 24FN-50S
MODEL 1240-1714
SERIES 24FN
COOLING Air
INSIDE DIAMETER 1/2" (12.7 mm)
NOZZLE DESIGN Standard Short Stop
NOZZLE STYLE Fine Thread-On
NOZZLE/CONTACT TIP RELATIONSHIP 5/32" (3.97 mm) Tip Recess
OUTSIDE DIAMETER 0.750" (19.05 mm)



Variants:



 PART NUMBER MODEL INSIDE DIAMETER NOZZLE DESIGN NOZZLE/CONTACT TIP RELATIONSHIP
24FN-37S 1240-1704 3/8" (9.5 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24FN-50S 1240-1714 1/2" (12.7 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24FN-62R 1240-1723 5/8" (15.9 mm) Tapered 1/2" (12.7 mm) Tip Recess
24FN-62S 1240-1724 5/8" (15.9 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
24FN-75S 1240-1734 3/4" (19.1 mm) Standard Short Stop 5/32" (3.97 mm) Tip Recess
