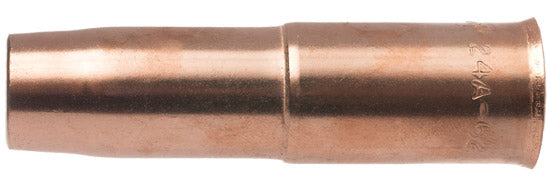

Tweco 24A-75SS (1240-1131) 24A Series 3/4" Standard Short Stop Slip-On Tip Recess Formed Nozzle (2 Pack)
$ 13.04
Unit price
/
Unavailable
By Tweco
Couldn't load pickup availability
Tweco 24A-75SS (1240-1131) 24A Series 3/4" Standard Short Stop Slip-On Tip Recess Formed Nozzle (2 Pack)
Professional & Weldskill 24 Series Air Cooled Nozzles offered in 2 Piece, coarse (CT) and fine thread (FN) series, as well as slip-on (A).
- 2-Piece Nozzle require 34A insulator (Sold Separately)
(Call for high usage quote - 641-201-1352)
Features:
- Used in light to medium duty welding applications up to 400 amp
- Formed and 3-piece nozzle designs
- Easy identification - Part No. rolled stamped on the outside surface
- Tapered nozzle 3-piece design - does not require an additional insulator
- Nozzle threads onto the conductor tube
Specifications:
| PART NUMBER | 24A-75SS |
| MODEL | 1240-1131 |
| SERIES | 24A |
| COOLING | Air |
| INSIDE DIAMETER | 3/4" (19.1 mm) |
| NOZZLE DESIGN | Standard Short Stop |
| NOZZLE STYLE | Slip-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | 1/8" (3.2 mm) Tip Recess |
| OUTSIDE DIAMETER | 0.750" (19.05 mm) |
Variants:
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 24A-37SS | 1240-1101 | 3/8" (9.5 mm) | Standard Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24AT-37SS | 1240-1301 | 3/8" (9.5 mm) | Tapered Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24A-50 | 1240-1110 | 1/2" (12.7 mm) | Standard | Adjustable Tip Recess - Tip Protruding |
| 24A-50SS | 1240-1111 | 1/2" (12.7 mm) | Standard Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24AH-50 | 1240-1210 | 1/2" (12.7 mm) | Standard Heavy Duty | Adjustable Tip Recess - Tip Protruding |
| 24AH-50SS | 1240-1211 | 1/2" (12.7 mm) | Heavy Duty Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24A-62 | 1240-1120 | 5/8" (15.9 mm) | Standard | Adjustable Tip Recess - Tip Protruding |
| 24A-62SS | 1240-1121 | 5/8" (15.9 mm) | Standard Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24AH-62 | 1240-1220 | 5/8" (15.9 mm) | Standard Heavy Duty | Adjustable Tip Recess - Tip Protruding |
| 24AH-62SS | 1240-1221 | 5/8" (15.9 mm) | Heavy Duty Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24A-75 | 1240-1130 | 3/4" (19.1 mm) | Standard | Adjustable Tip Recess - Tip Protruding |
| 24A-75SS | 1240-1131 | 3/4" (19.1 mm) | Standard Short Stop | 1/8" (3.2 mm) Tip Recess |
| 24AH-75 | 1240-1230 | 3/4" (19.1 mm) | Standard Heavy Duty | Adjustable Tip Recess - Tip Protruding |
| 24AH-75SS | 1240-1231 | 3/4" (19.1 mm) | Heavy Duty Short Stop | 1/8" (3.2 mm) Tip Recess |
