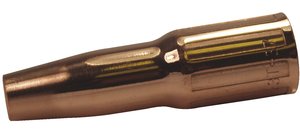

Tweco 23T-37 (1230-1300) 23T Series 3/8" Tapered Thread-On Tip Recess Nozzle (2 Pack)
$ 67.02
Unit price
/
Unavailable
By Tweco
Couldn't load pickup availability
Tweco 23T-37 (1230-1300) 23T Series 3/8" Tapered Thread-On Tip Recess Nozzle (2 Pack)
Professional & Weldskill 23 Series Air Cooled Thread-On Nozzles offered in Standard, Tapered, and Heavy Duty varieties.
3-Piece Nozzle Design Includes:
- Nozzle Housing - Cut and Formed form 122 DHP copper alloy tubing
- Nozzle Insert - machined from a solid brass alloy and machining the internal threads to match the gas diffuser
- Nozzle Insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
(Call for high usage quote - 641-201-1352)
Features:
- Easy identification - Part No. rolled stamped on the outside surface
- Tapered nozzle 3-piece design - does not require an additional insulator
- Nozzle threads onto the gas diffuser
Specifications:
| PART NUMBER | 23T-37 |
| MODEL | 1230-1300 |
| SERIES | 23T |
| COOLING | Air |
| INSIDE DIAMETER | 3/8" (9.5 mm) |
| NOZZLE DESIGN | Tapered |
| NOZZLE STYLE | Thread-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| OUTSIDE DIAMETER | 0.875" (22.2 mm) |
Variants:
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 23-37 | 1230-1100 | 3/8" (9.5 mm) | Standard | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23-37F | 1230-1102 | 3/8" (9.5 mm) | Standard | Flush to 1/16" (1.6 mm) Tip Recess |
| 23T-37 | 1230-1300 | 3/8" (9.5 mm) | Tapered | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23T-37F | 1230-1302 | 3/8" (9.5 mm) | Tapered | Flush to 1/16" (1.6 mm) Tip Recess |
| 23-50 | 1230-1110 | 1/2" (12.7 mm) | Standard | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23-50F | 1230-1112 | 1/2" (12.7 mm) | Standard | Flush to 1/16" (1.6 mm) Tip Recess |
| 23H-50 | 1230-1210 | 1/2" (12.7 mm) | Heavy Duty | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23-62 | 1230-1120 | 5/8" (15.9 mm) | Standard | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23-62F | 1230-1122 | 5/8" (15.9 mm) | Standard | Flush to 1/16" (1.6 mm) Tip Recess |
| 23H-62 | 1230-1220 | 5/8" (15.9 mm) | Heavy Duty | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23H-62F | 1230-1222 | 5/8" (15.9 mm) | Heavy Duty | Flush to 1/16" (1.6 mm) Tip Recess |
| 23-75 | 1230-1130 | 3/4" (19.1 mm) | Standard | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
| 23-75F | 1230-1132 | 3/4" (19.1 mm) | Standard | Flush to 1/16" Tip Recess (3.2 mm - 3.97 mm) |
| 23H-75 | 1230-1230 | 3/4" (19.1 mm) | Heavy Duty | 1/8" - 5/32" Tip Recess (3.2 mm - 3.97 mm) |
