Tweco WCRG-1200 (9255-1112) 1200A Roto-Work Ground Clamp (1 Clamp)

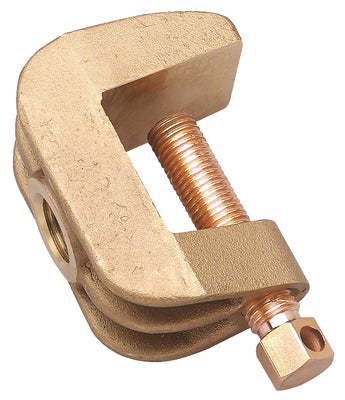

Tweco Roto-Work Ground Clamps are designed primarily to work in conjunction with the Tweco Roto-Ground Device. However, they may also be used for other high amperage grounding applications. The Roto-Ground shaft screws into the tapped back of the Roto-Work Clamp. The clamp is quickly attached or moved from one rotation weldment or fixture to the other without removing the Roto-Ground from it, saving on welding down time.
Roto-Work Clamps are made from a copper alloy. They come in 600, 1200 and 2000 ampere capacity. Large tightening screws and ample contact surface area provide cool, efficient operation.
- Two tightening screws
- Heavy duty rotary ground clamps
| AMPERAGE | 1200 |
| FITS ROTO-GROUND | RG-240/440 |
| CLAMP CONTACT | 9 sq in |
| THROAT HEIGHT | 3" (76.2 mm) |
| THROAT DEPTH | 3" (76.2 mm) |
| OVER-ALL HEIGHT | 6-3/4" (171.0 mm) |
| OVER-ALL WIDTH | 3" (76.2 mm) |
| TAPPED FOR | 1-3/8" NC |
