Weldmark by Metal Man Workgear WEM TIG200 AC/DC

$ 1,040.00
By Weldmark
View details

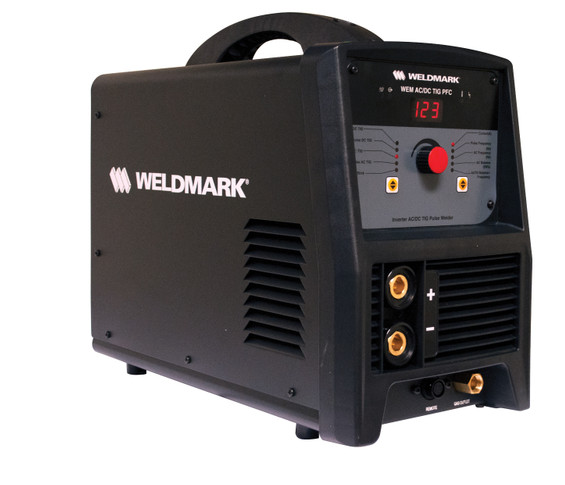

Weldmark by Metal Man Workgear WEM TIG200 AC/DC

Includes: TIG torch, foot pedal, regulator/flowmeter with inert gas hose, ground cable and clamp, electrode holder with cable.

Descriptions

The Weldmark TIG200 AC/DC TIG and Stick Welder runs with an AC frequency range of 50-150 Hz with a square wave form. Duty cycles are rated as 35% @80A w/120V input power|20% @160A w/230V input power stick welding, and 35% @125A w/120V input power|20% @200A with 230V input power single phase TIG welding processes. Machine comes complete with a 17 style TIG torch assembly, a foot pedal, regulator/flowmeter with inert gas hose, a ground cable and clamp and an electrode holder with cable.
Marketing Descriptions
The Weldmark TIG200 AC/DC TIG and Stick Welder runs with an AC frequency range of 50-150 Hz with a square wave form. Duty cycles are rated as 35% @80A w/120V input power|20% @160A w/230V input power stick welding, and 35% @125A w/120V input power|20% @200A with 230V input power single phase GTAW|SMAW processes. Machine comes complete with a 17 style TIG torch assembly, a foot pedal, regulator/flowmeter with inert gas hose, a ground cable and clamp and an electrode holder with cable. Its dimensions measure 19.69 x 9.45 x 16.14, and weights 31.97 lbs. Meets or exceeds CSA standards. Rated for standard duty. Made in China.

Specifications

  • Power Supply:
    • 120V, 20A,50/60 Hz,Single Phase
    • 230V, 31A,50/60 Hz,Single Phase
  • Rated Duty Cycle: 20% @ 200A
  • Net Weight: 31.97 lbs.
  • Dimensions: 19.69"x9.45"x16.14"
  • Rated Output:
    • DC TIG:
      • 120V, 10-125A
      • 230V, 10-200A
    • AC TIG:
      • 120V, 15-125A
      • 230V, 15-200A
    • Stick:
      • 120V, 10-80A
      • 230V, 10-160A

Features

Weldmark inverter powered TIG200 AC/DC is a dual voltage, powered AC and DC TIG, Pulse TIG and and DC stick welder
Intended to be used on a 50 amp 230V AC circuit or 120V, 20A AC circuit without the use of an extension cord
Equipped with advanced TIG capabilities including Pulse, AC arc frequency control, AC arc balance control and auto balance/frequency control
Advanced inverter technology that powers the TIG200 AC/DC provides for better arc control, lower power consumption in a lighter more portable unit
Digital meters display welding amperage and voltage while welding

Additional Info

Package Description
Box
Package Height
18.50000000
Package Length
23.00000000
Package Width
12.75000000
Package Weight
32.000000000 lbs
Enriched Indicator
Enhanced
Country of Origin
China
