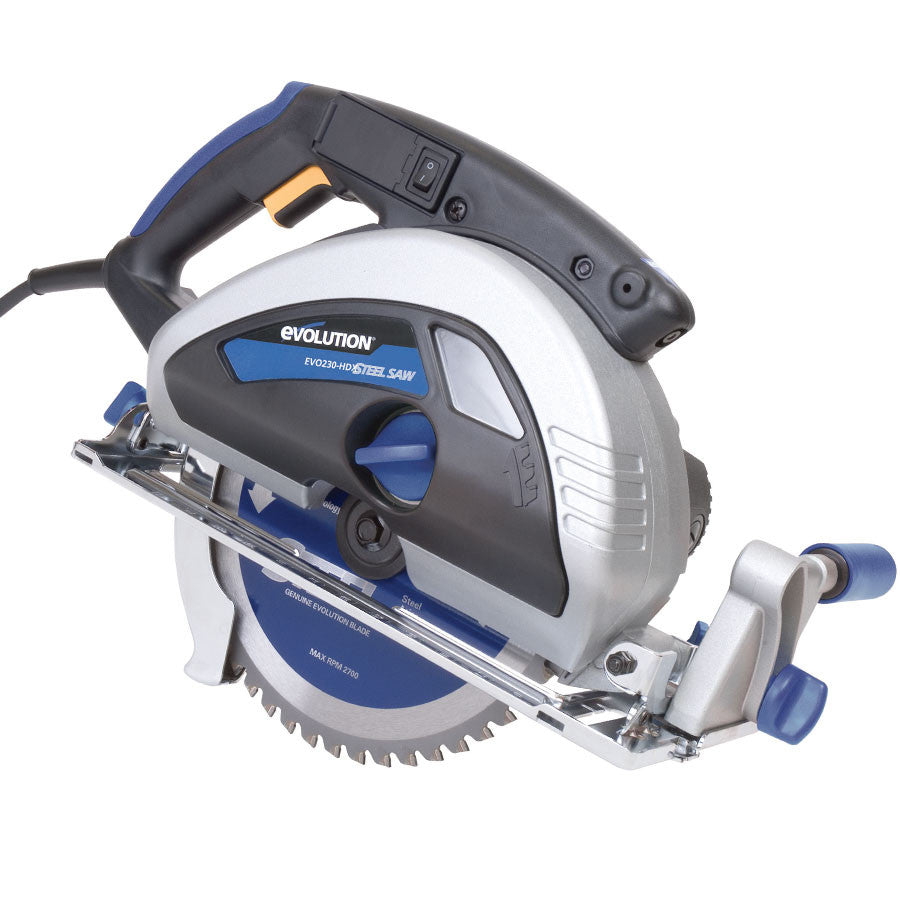

Evolution EVOSAW230 Saw and Saw Blade

EVOSAW230 - HEAVY DUTY. RELIABLE. PORTABLE.

9” STEEL CUTTING CIRCULAR SAW & BLADE. Cuts Steel Without Heat, Burrs or Coolant! The EVOSAW230 is supplied with a 230mm (9”) Steel blade. It also comes with: carrying case, side handle, wrench, spare carbon brush set, fence guide, goggles, 2 batteries, ear plugs, and manual.

• POWERFUL: Hi-torque 1750W motor with optimized gears & patented carbide-tipped blade, provides greatest blade-life value & smooth mild steel cuts.
• 3 YEAR WARRANTY: Best-in-class, reliable, no quibble warranty - so you can always get the job done.
• TRUE ACCURACY: Laser guide and fence guide help ensure straight and accurate metal cutting. See the EVOSAW230 in action.
• INDUSTRIAL QUALITY: Rated for heavy duty and industrial applications with chip collection capability. Also includes a safety switch with overload protection.
• VIRTUALLY NO SPARKS: Quicker, safer, more accurate & economical than an angle grinder! When cutting steel, the material has a workable finish; producing minimal heat, burrs, or sparks.
• VERSATILE METAL CUTTING: Easily adjustable depth of cut and 0-45° bevel tilt enhance the Evosaw230's cutting versatility.
• FULL BLADE RANGE: Cut Steel, Stainless Steel, Thin Steel and Aluminum with the optional blades available! The combination of an evolution saw and blade is the ultimate in cutting technology.

EVOSAW230 - TECHNICAL SPECIFICATIONS

Motor: 1750W (120V ~ 60Hz)
Amps: 15
Horsepower: 2.35
RPM (No Load): 2700
Recommended Max. Duty Cycle: 30 minutes
Sound Pressure Level(Under Load): 108.7 dB(A)
Vibration Level (Under Load): 3.9 m/s²
Maximum Thickness of Cut: 1/2 inch
Maximum Cutting Depth At 90°: 3-1/4 inches
Maximum Cutting Depth At 45°: 2-1/8 inches
Tool Dimensions (H x W x L): 12-3/8 inches x 16-3/4 inches x 12-3/4 inches
Weight: 32 lbs
