Evolution EVOMAG42 1-5/8 in Industrial Magnetic Drill (1 each)

Evolution EVOMAG42 1-5/8 in Industrial Magnetic Drill (1 each)

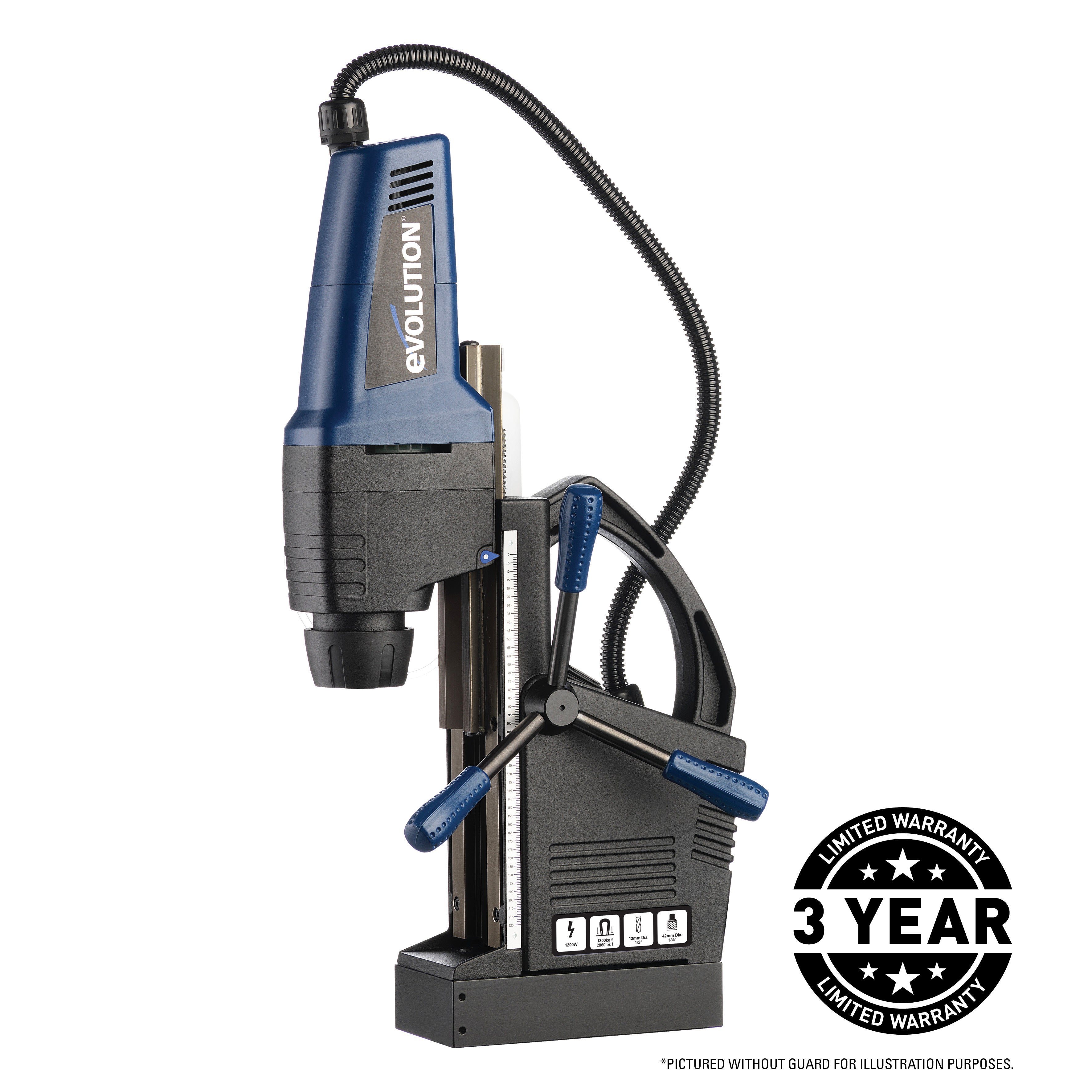

EVOMAG42: 1-5/8 in Industrial Magnetic Drill

The EVOMAG42 is supplied with a carry case, 1/2" drill chuck & key, chuck adaptor, coolant bottle assembly, four hex keys, three handles, safety strap, safety guard & manual

• INDUSTRIAL QUALITY: This compact Magnetic Drill is deceptive in its capabilities; although small in size it is highly productive in heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.

• 3 YEAR WARRANTY: Best-in-class, reliable, no quibble warranty - so you can always get the job done.

• IDEAL FOR SITE USE: With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its light weight makes it manageable to position in both awkward and confined spaces.

• TWIST DRILL FUNCTION: The impressive EVOMAG42 offers incredible value with the capability to use up to 1-5/8" (42mm) cutters and 1/2" (13mm) twist drills! The EVOMAG42 also features an integrated coolant system for magnetic drilling.

EVOMAG42 - TECHNICAL SPECIFICATIONS

Motor: 1200W (120V ~ 60Hz)
Amps: 10
Horsepower: 1.6
RPM (No Load): 450
Recommended Max. Duty Cycle: 30 minutes
Sound Pressure Level(Under Load): 90 dB(A)
Maximum Cutter Diameter: 1-5/8 inch
Maximum Depth of Cut: 2 inches
Stroke Length: 5-1/16 inches
Magnetic Holding Power: 2860 pounds
Arbor Bore Diameter: 3/4 inch
Tool Weight: 26.5 pounds
Head Fully Raised (HxWxL): 25-3/4 inches x 8-3/4 inches x 14 inches
Head Fully Lowered (HxWxL): 16-1/2 inches x 8-3/4 inches x 14 inches
Magnetic Dimensions (HxWxL): 1-5/8 inches x 3-1/2 inches x 7-1/8 inches
Shipping Weight: 39 pounds
Shipping Dimensions (HxWxL) 19-1/4 inches x 8-1/4 inches x 22-1/2 inches
