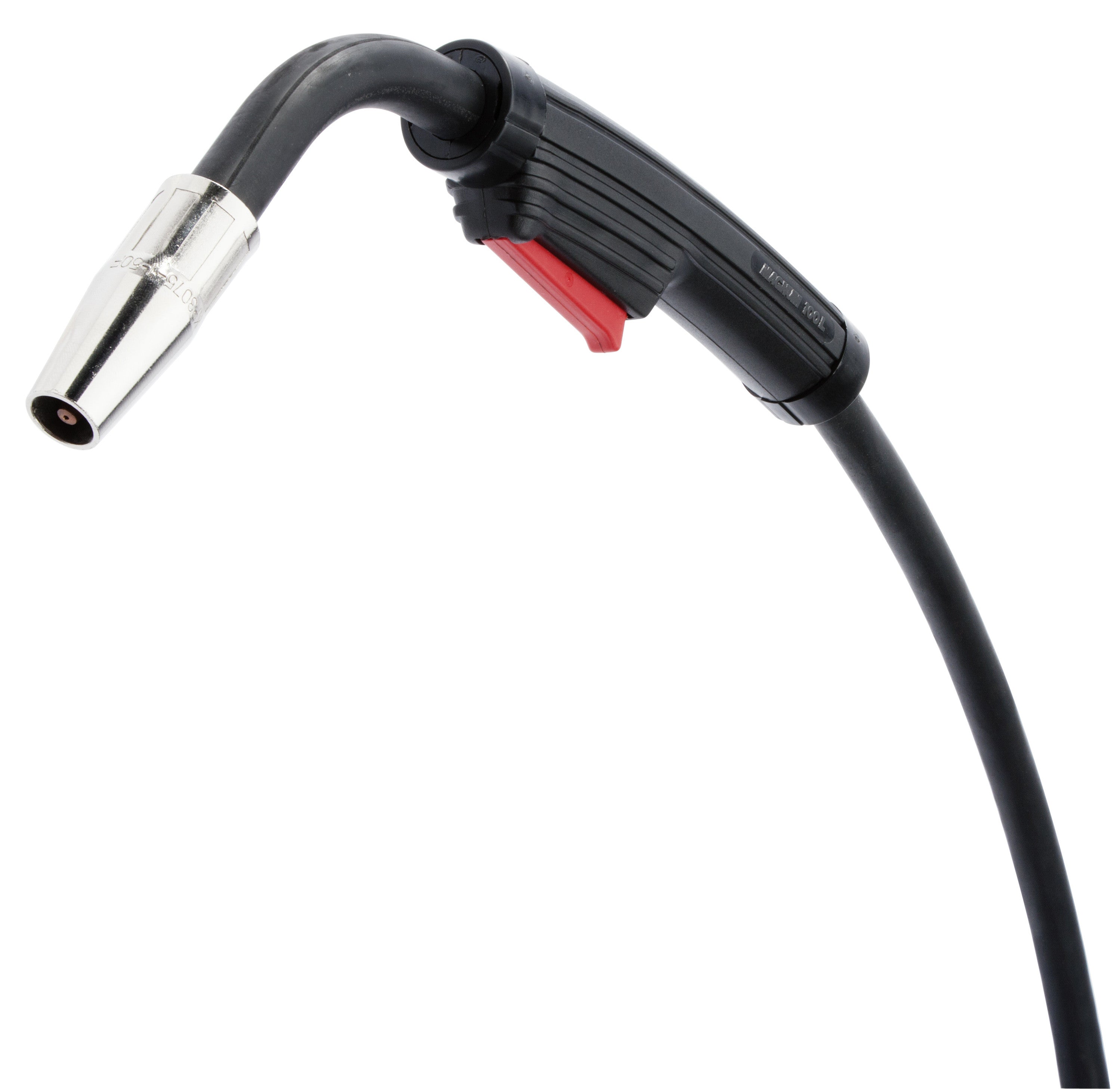

Lincoln K4528-1 Magnum® PRO 100L Welding Gun, 10 ft, 4-Pin

$ 324.00
By Lincoln Electric
View details

Lincoln K4528-1 Magnum® PRO 100L Welding Gun, 10 ft, 4-Pin





The Magnum PRO 100L is the most lightweight and compact gun the Magnum PRO L-series family. It is ideal for most home, farm, and small shop projects, as well as auto body and light maintenance and repair applications.



Processes:

  • MIG, Pulsed MIG, Flux-Cored



Wire Diameter Range:

  • .025" - .045" (0.6 - 1.22 mm)



Features & Benefits



PREMIUM TIP PERFORMANCE

  • The large mass of the Magnum PRO Copper Plus™ contact tips help disperse heat, keeping tips cooler and expanding their life
  • The Anti-Seize™ threads prevents tips from seizing in the diffuser



COMFORTABLE GRIP

  • The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun



100% DUTY CYCLE

  • The 100L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs


Video(s)




Specifications



CABLE LENGTH 10 ft, 4-pin
NET WEIGHT 2.73 lbs (1.24 kg)
DUTY CYCLE AT RATED AMPERAGE 100%
RATED AMPERAGE 100A
WIRE DIAMETER .025" - .045" (0.6 - 1.2 mm)



 Included





  • Contact Tip KP2744-025T (Qty 1)
  • Contact Tip KP2744-035T (Qty 1)
  • Gas Diffuser (KP3076-1)
  • 0.5 (12.7 mm) Thread-On Gas Nozzle Flush (KP3076-1)
  • Gun Liner (KP35-40-15)
  • Integrated Gun Connector



Contact Tips



PRODUCT NUMBER PRODUCT NAME
KP2744-025T Lincoln .025" 350A Tapered Copper Plus Contact Tip
KP2744-030T Lincoln .030" 350A Tapered Copper Plus Contact Tip
KP2744-035T Lincoln .035" 350A Tapered Copper Plus Contact Tip
KP2744-040T Lincoln .040" 350A Tapered Copper Plus Contact Tip
KP2744-045T Lincoln .045" 350A Tapered Copper Plus Contact Tip



Nozzles



PRODUCT NUMBER  PRODUCT NAME
KP3084-1 Lincoln Gasless Nozzle for Magnum Pro 100L
KP3075-1-38F Lincoln 3/8" Flush Thread-On Gas Nozzle for 100L
KP3075-1-38S Lincoln 3/8" Thread-On 1/4" Stickout Gas Nozzle for 100L
KP3075-1-50F Lincoln .50" Flush Thread-On Gas Nozzle for 100L
KP3075-1-50S Lincoln .50" Thread-On 1/4" Stickout Gas Nozzle for 100L



Diffusers



PRODUCT NUMBER PRODUCT NAME
KP3076-1 Lincoln Magnum Pro 100L Gas Diffuser



Liners



PRODUCT NUMBER PRODUCT NAME
KP35-40-15 Lincoln .023" - .035" Cable Liner (15 ft)
KP45-40-15 Lincoln .035" - .045" MIG Cable Liner (15 ft)
KP1959-1 Lincoln .035" Aluminum Cable Liner (15 ft)



Gun Tubes



PRODUCT NUMBER PRODUCT NAME
KP3082-60 Lincoln 60° Gun Tube for Magnum Pro 100L
