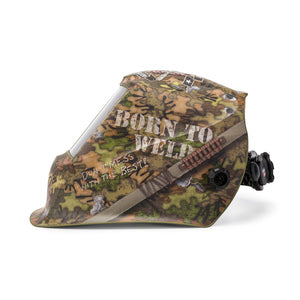

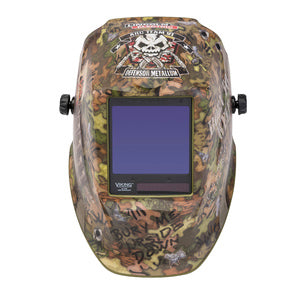

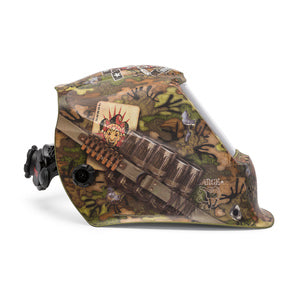

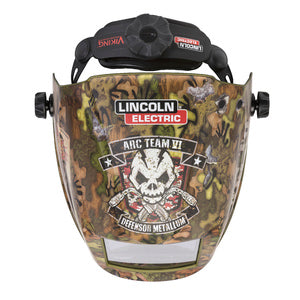

Lincoln K3616-4 Viking® 3350 Born to Weld™ Welding Helmet

$ 377.41 $ 529.00

$75 End-User Manufacturer's Rebate After Purchase. Rebate available until 12/31/24.

Lincoln K3616-4 Viking® 3350 Born to Weld™ Welding Helmet

Product Description

Lincoln K3616-4 Viking® 3350 Born to Weld™ Welding Helmet





The new and improved Viking 3350, their top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility.



  • Industry Leading Optics - 4C® Lens Technology, 1/1/1/1 Optical Clarity and extra large 12.5 sq. inch viewing area
  • All Day Comfort - Innovative X6 Headgear distributes weight, reduces pressure and optimizes balance
  • Increased Productivity - External low profile grind control
  • Professional Versatility - Optimized performance for all welding/cutting processes & environments
  • 3 year hassles free warranty



Features:





4C® LENS TECHNOLOGY

  • Broadens the color range & hues which can be seen in both light and dark states
  • This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle



PERFECT 1/1/1/1 OPTICAL CLARITY

  • This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens



EXTRA LARGE VIEWING AREA

  • The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control



X6 HEADGEAR





LOW PROFILE EXTERNAL GRIND CONTROL





Specifications:

LENS SWITCHING SPEED (SEC) 1/25,000
VARIABLE SHADE/CONTROL  5-13 internal
BATTERY REPLACEMENT TYPE 1 CR2450 Replaceable Battery
MAGNIFYING "CHEATER" CAPABLE LENS Yes
GRIND MODE/SHADE CONTROL 3.5 / External & Internal
LIGHT SENSITIVITY CONTROL Continuous
DELAY CONTROL DARK TO LIGHT (SEC) 0.1 - 1.0 Fully Adjustable
ARC SENSORS 4
TIG AMP RATING
  • DC > 2 Amp
  • AC > 2 Amp
CARTRIDGE SIZE 4.5" x 5.25" (114 mm x 133 mm)
VIEW SIZE 3.74" x 3.34" (95 mm x 85 mm)
TEMPERATURE RANGE Operating
  • -10°C - 55°C
  • 14° F - 131° F

Storage

  • -20° C - 70° C
  • -4° F - 158° F
    WARRANTY 3 Years



    Included:

    • Helmet Bag
    • Bandana
    • 5 Outside Cover Lenses
    • 2 Inside Cover Lenses
    • Sticker Sheet



    Expendable Parts:

    PRODUCT NUMBER PRODUCT NAME
    KP2898-1 Lincoln VIKING™ 750S/2450/3350 Series Outside Cover Lens
    KP3044-1 Lincoln VIKING™ 3350 Series Inside Clear Cover Lens
    KP3047-1 Lincoln 1840/2450/3350 Halo Style Hard Hat Adapter
    KP3486-1 Lincoln VIKING® 1740/1840/2450/3350 Slotted Hard Hat Adapter
    KP3045-4 Lincoln Viking™ 3350 Series - ADF Cartridge Kit
    KP4491-1 Lincoln CR2450 Lithium Battery
    KP4562-1 Lincoln Viking™ 2450/3350 Grind Button Replacement
    KP2930-1 Lincoln Viking All Purpose Sweatband Package
    KP4470-1 Lincoln Viking™ X6 Headgear™ Kit
    KP3908-1 Lincoln Pivot Headgear
    KP4100-1 Lincoln Ratchet Style Headgear with Sweatband
    KP3046-150 Lincoln Cheater Lens 1.50 MAG
    KP3046-175 Lincoln Cheater Lens 1.75 MAG
    KP3046-200 Lincoln Cheater Lens 2.00 MAG
    KP3046-225 Lincoln Cheater Lens 2.25 MAG
    KP3046-250 Lincoln Cheater Lens 2.50 MAG
    KP4561-1 Lincoln Viking™ 2450/3350 4th Generation Matte Black Helmet Shell
    KP4560-1 Lincoln Viking™ 2450/3350 4th Generation Gloss Black Helmet Shell
    KP3729-1 Lincoln Split Leather w/ Press Fit Seal Helmet Bib
    KP4541-1 Lincoln Soft Cotton Back Pad for X6 Headgear™
