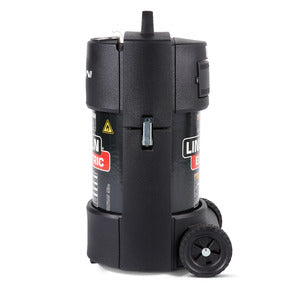

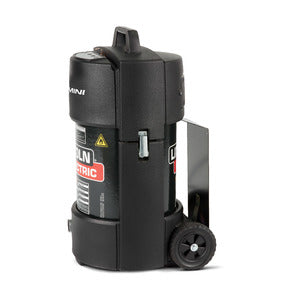

Lincoln K3972-5 X-Tractor® Mini Portale Welding Fume Extractor w/ EN 20 Nozzle





FUMES DON'T STAND A CHANCE



The X-Tractor® Mini is a light weight, high vacuum portable fume extraction system designed to filter particulate and remove welding fumes. Intended for light duty welding applications, the quiet operation and portability of the X-Tractor Mini make this system an ideal solution for confined and hard to reach spaces.

  • Create a safer work environment for welders/shop employees
  • Effectively remove weld fume particulate with large surface are coverage
  • 99.7% filter unit efficiency
  • Light weight, durable construction and portable design
  • Compact size for use anywhere you go



Features and Benefits



CURRENT SENSOR

  • Automatic start/stop capability by sensing welding current



MULTIPLE EXTRACTION SETTINGS

  • Select extraction CFM setting based on environmental conditions


QUIET OPERATION

  • Operates at a sound level of <80dB(A)


CARBON BRUSH SYSTEM

  • Monitors and alerts brush consumption based on 750 run hours


SYSTEM AIRFLOW CHECK

  • Easily observe extraction performance

Specifications


INPUT POWER 120/1/50/60
INPUT CURRENT 12A
DIMENSIONS (H X W X D) 29" x 15.6" x 16.8" (736 x 396 x 427 mm)
NET WEIGHT 43 lbs (19.5 kg)
SOUND LEVEL 80 dBA
AIR FLOW CFM Low: 95
High: 108
POWER RATING HP 2.4 (1.2/motor)
FILTER SURFACE AREA 118 ft² (11 m²)

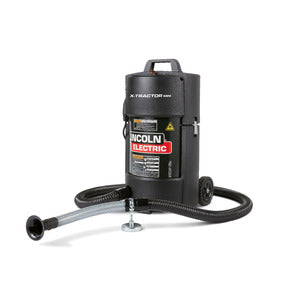

Included



  • Extraction Hose with adapter - 8 ft. (2.4 mm) length with 1-3/4 in. (45 mm) I.D.
  • Long Life-H main filter
  • HEPA filter
  • EN-20 Extraction Nozzle

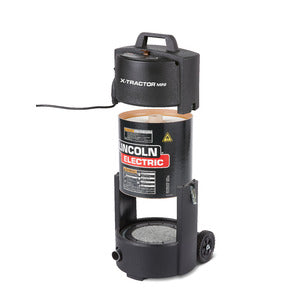

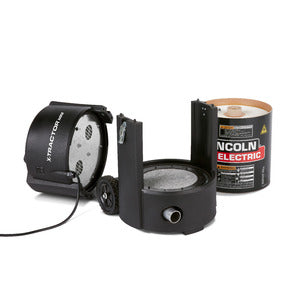

Filtration Process



X-TRACTOR MINI FIVE-STAGE FILTRATION PROCESS





A - Stage 1: Air passes through a removable and washable pre-filter (KP2390-3) where heavier particles and foreign material are captured in the collection tray.
B - Stage 2: Air passes through a second pre-separator to further reduce medium to heavy particulate matter.
C - Stage 3: Air passes through the LongLife-H filter (KP2390-1) where welding fume particles are captured and deposited.
D - Stage 4 (optional): Activated carbon filter (KP2389-1) will help prevent or neutralize the release of odors back into the environment.
E - Stage 5: Final filtration as air passes through the HEPA E12 Class Filter (KP2390-4).
F - Automatic Start/Stop for less energy consumption and convenience
G - Smart noise insulator
H - Wheels are standard for easy portability
I - Intake connection for extraction hose
J - Current sensor cable tray/groove



Accessories



PRODUCT NUMBER PRODUCT NAME
KP2390-5 Lincoln X-Tractor® Mini Filter One-Pak®
KP2390-1 Lincoln X-Tractor® Mini LongLife-H Filter
KP2390-4 Lincoln Miniflex® HEPA Filter
KP2390-3 Lincoln X-Tractor® Mini Pre-Filter
K2389-5 Lincoln EN-20 Extraction Nozzle
K639-6 Lincoln UNM Suction Nozzle for Heavy Smoke
K639-1 Lincoln 12" (300 mm) SHM-300 Suction Nozzle
K639-5 Lincoln 6" SHFA Flat Head Suction Nozzle
K2389-7 Lincoln MBH Wall Mounting Bracket
K2389-3 Lincoln NKT Nozzle Kit
K2389-10 Lincoln 1-3/4" Hose to Hose Connecter
K2389-2 Lincoln Miniflex® Outlet Side Hose Connector
K2389-8 Lincoln 1-3/4" x 16'  Miniflex® Extraction Hose w/ Adapters
K2389-9 Lincoln 1-3/4" x 8'  Miniflex® Extraction Hose w/ Adapters
